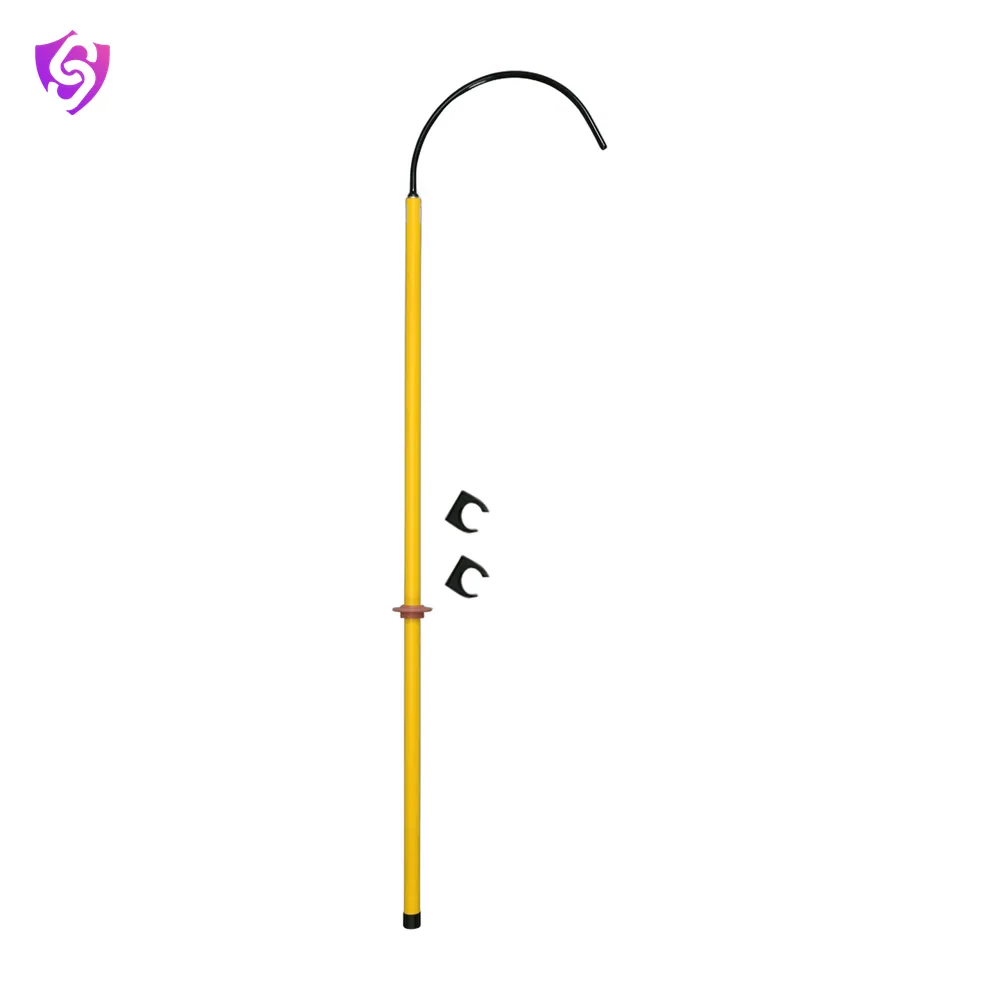

45 Kv rescue stick

The TP12EC Rescue Stick is engineered to handle the demanding requirements of emergency response in high-voltage settings.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	45 Kv
Model No	TP12EC
Operating Voltage	45 kV
Test Voltage	100 kV
Overall Length with Hook	1.7 m (5.8 ft)
Overall Length w/o Hoo	1.47 m
Opening of the Protected Area (Hook)	600 mm (23.62 inch)
Hook	Steel Tube 18 x 1.5 cm
Hook delivered	Dismantled
Color	Yellow

Key features

Stick for rescuing an injured technician (electrocution, dizziness...), working on category 1, 2 and 3 substations.
It is used to grasp the injured person by the waist and bringhim back to a protected area.
The hook is fully non-conductive, making it safe to use around electrical equipment and wires.
The Safety Rescue Hook is a durable and strong tool that is perfect for use in emergency situations.
Rescue Stick are insulated for use with MV-HV voltages up to 45kV.

Applications

Substations and switchyards
Power generation and distribution
Panel and MCC maintenance
Data centres

Care and replacement

Keep arc-rated garments clean and free of flammable contaminants. Retire any garment that is torn or has been exposed to an arc. Store insulating gloves away from sunlight and ozone.
