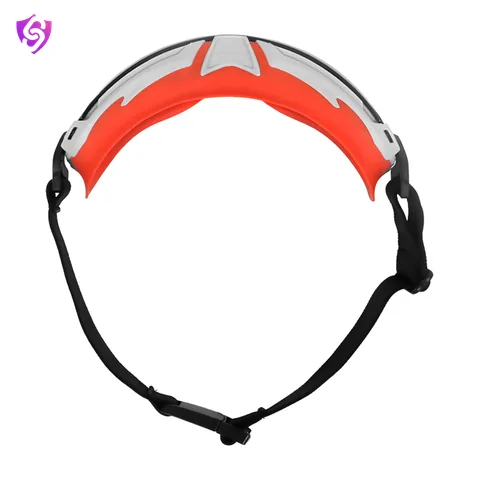

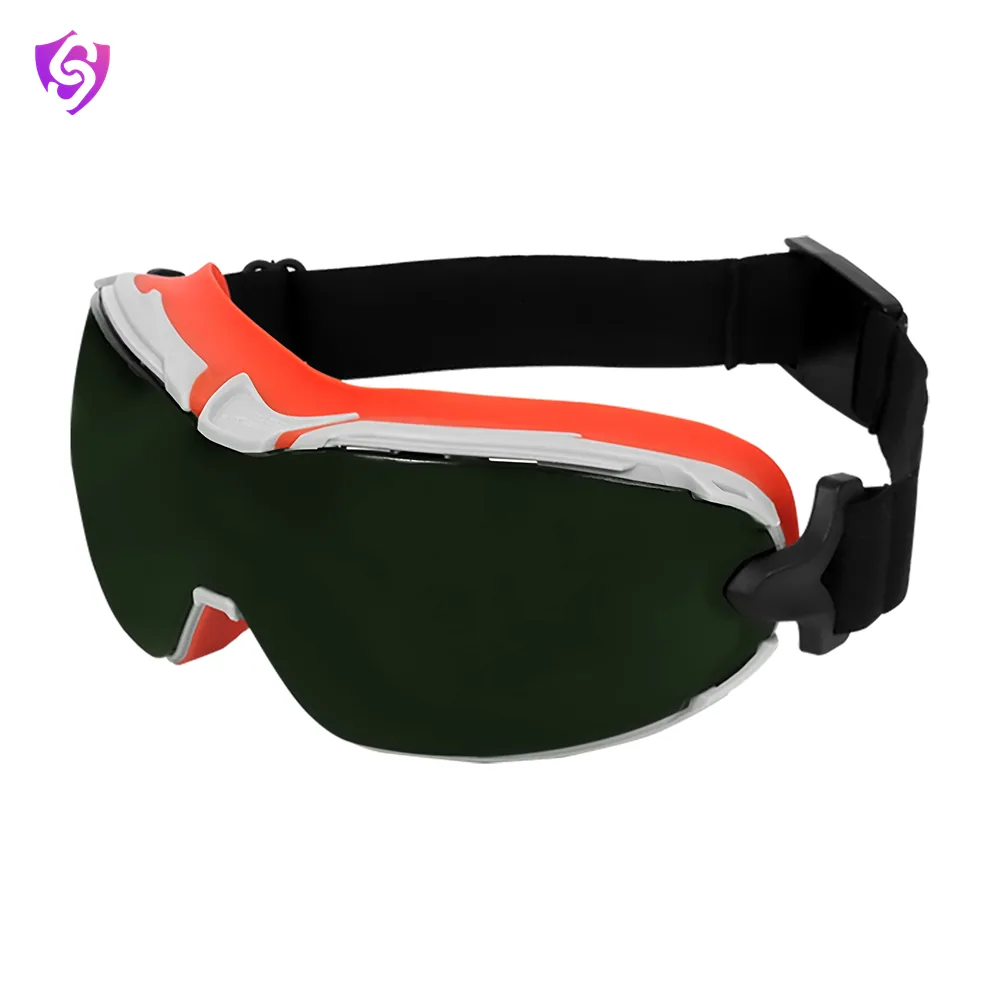

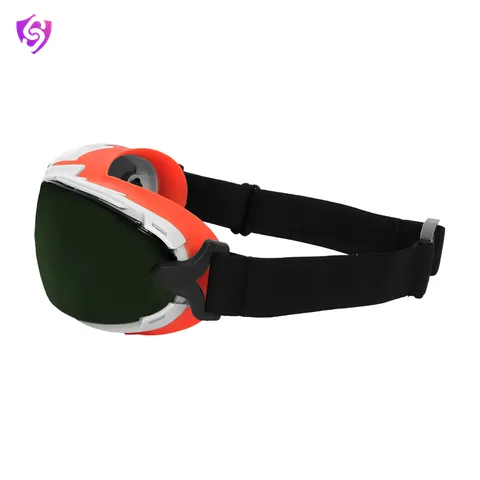

Ultraview IR (Shade-5)

Name: Udyogi Ultraview IR (Shade-5)
Brand: Udyogi

Welding Goggles with polycarbonate lens with IR protection and soft co-injected TPE frame body provides excellent impact protection

EN 166EN 170

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	ULTRAVIEW IR
Lens Component	Polycarbonate
Body Component	Co-injected polymer
Nose piece	Integral to frame body
Headband component	Textile elastic
Buckle	POM
Impact Resistance	B (120 m/s)
Coating	K (Hard Coat) & N (Anti Fog)
Lens option	DIN 5
Optical Class	1
Filter	Shade 5
Weight	80 grams
Packaging	100 pcs. per carton
Standard	EN166 :2001, EN 170, CE

Key features

Polycarbonate lenses with IR protection are mounted on soft rubber frame body.
OTS design, soft TPE frame & body provides impact protection, protective eyewear
Anti-fog & hard coating on lens
Universal fit soft nose bridge confirms to facial contours
Lens provides high velocity impact & welding, arc plash protection
Lens filters out 99.9% of harmful UV light
Indirect ventilation system
Fully adjustable headband attached to fit most users
Soft goggle body conforms to facial contours for a very comfortable fit

Applications

Construction
Chemical
Iron & Steel
Power
Automobile
Heavy Manufacturing

Care and replacement

Clean lenses with water and a soft cloth; do not use solvents. Replace eyewear with scratched, pitted or cracked lenses, and face shields with a crazed visor.
