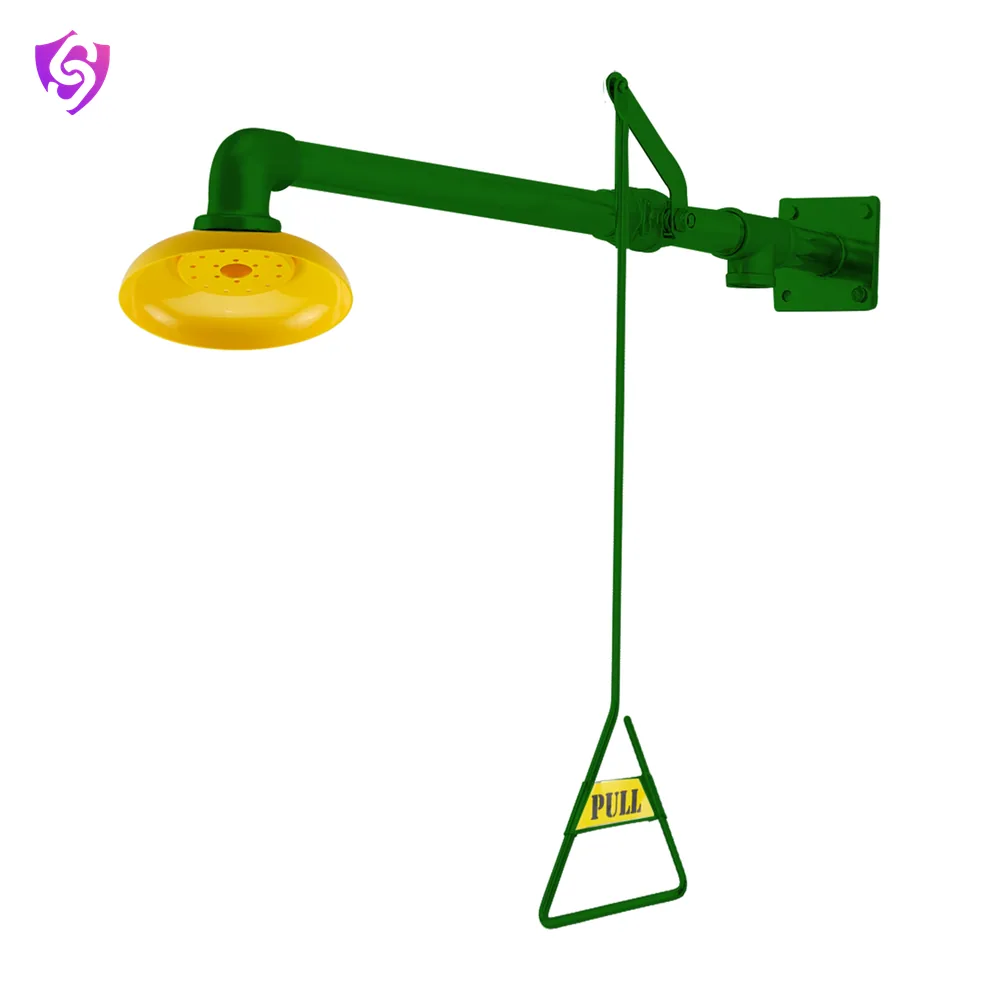

4102 GI eye wash
The emergency shower is designed for emergency use to provide immediate body rinsing
- Test certificate available on request
Specifications
| Brand | Udyogi |
|---|---|
| Model | 4102 GI |
| Material | GI Material |
| Finish | Powder Coated |
| Ball Valve | SS 304 Grade |
| Bowl & Eye Wash Pipe | ABS Grade |
| Water Delivery | Delivers a Steady Water Flow from the Wall-Mounted Shower Head for Quick and Effective Washing |
| Applications | Ideal for Laboratories, Chemical Plants, and Industrial Areas |
| Water Flow | 76 LPM |
| Operating Pressure | 2-3 Kg/cm² |
Key features
- Integrated Shower: Provides emergency decontamination for body.
- Material of Construction: Galvanized Iron (GI).
- Valve Type: Ball Valve.
- Shower Head: ABS – High Visible Yellow.
- Colour: Safety Green & Yellow.
- Valve Type: Stainless Steel Ball Valve.
- Valve Size: 1” Shower.
- Activation Mechanism: Shower activates by pull rod.
- Inlet Connection: 1-1/4" BSP (Female Thread).
- Mounting Type: Ceiling.
- Size of Head Shower: 260 mm ± 5 mm.
Applications
- Chemical and fertiliser plants
- Battery rooms
- Laboratories
- Effluent treatment
Care and replacement
Activate plumbed units weekly to flush the line and confirm flow. Keep the area clear and signed.
