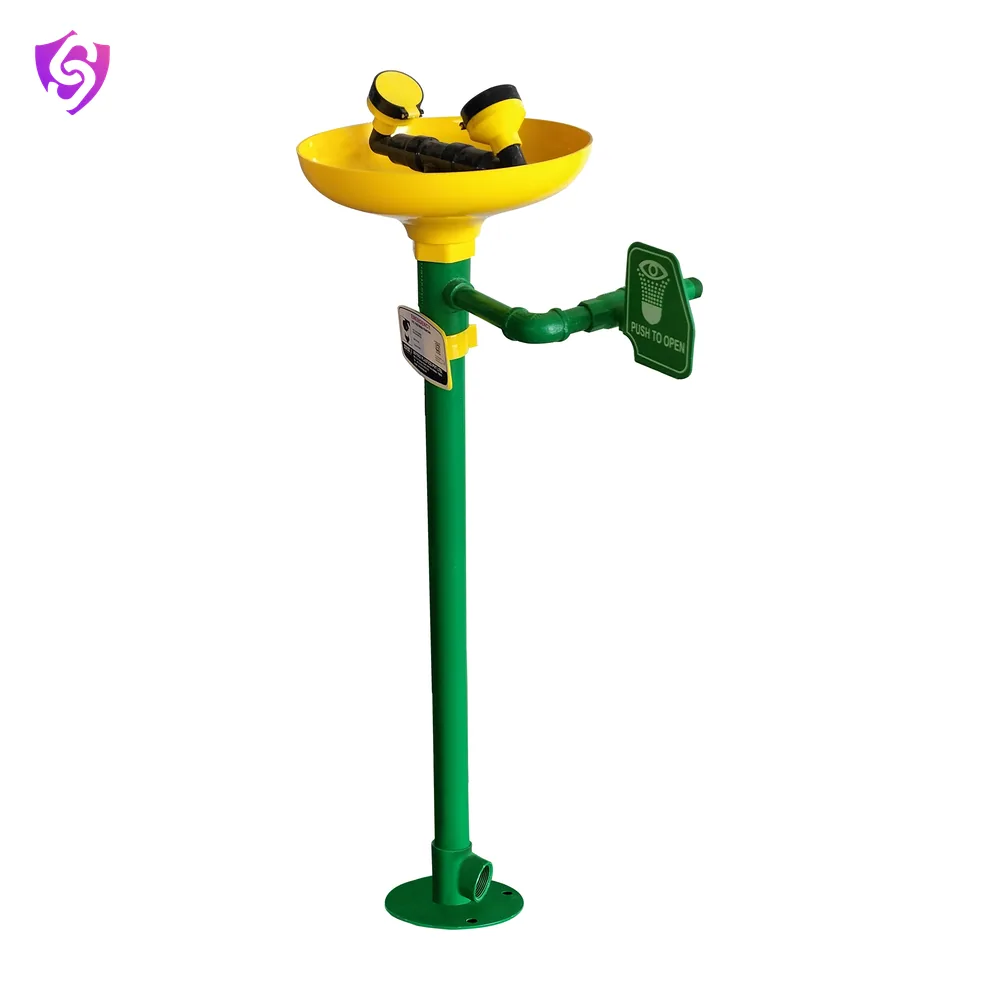

4220 GI eye wash
Emergency eye/face wash fountain operates independently by push lever
- Test certificate available on request
Specifications
| Brand | Udyogi |
|---|---|
| Model | 4220 GI |
| Material | GI Material |
| Finish | Powder Coated |
| Ball Valve | SS 304 Grade |
| Bowl & Eye Wash Pipe | ABS Grade |
| Receptor Bowl & Atomiser Sprinkler | Made of ABS and Highly Resistant to Acid, Alkali & Oil |
| Operating Pressure | 2-3 Kg/cm² |
| Water Flow | 12 LPM |
Key features
- Water inlet connections of 1-¼” NB.
- Water outlet connection – 1¼” NB.
- Head shower discharge rate – 76 lpm (minimum).
- Eye wash discharge rate – 12 lpm (minimum).
- Push plate for one hand operation.
- Push to open valve - connects unit to uninterruptible water supply.
- Base plate - to hold the shower structure in a stable position (Size-180 mm).
- Newly introduced straight model body for better flow of water in minimum time.
- Welded base flange and drain outlet introduced for easy installation.
- Square base flange for better positioning on ground surface.
- External 1-1/4” BSP thread of drain outlet introduced.
Applications
- Chemical and fertiliser plants
- Battery rooms
- Laboratories
- Effluent treatment
Care and replacement
Activate plumbed units weekly to flush the line and confirm flow. Keep the area clear and signed.
