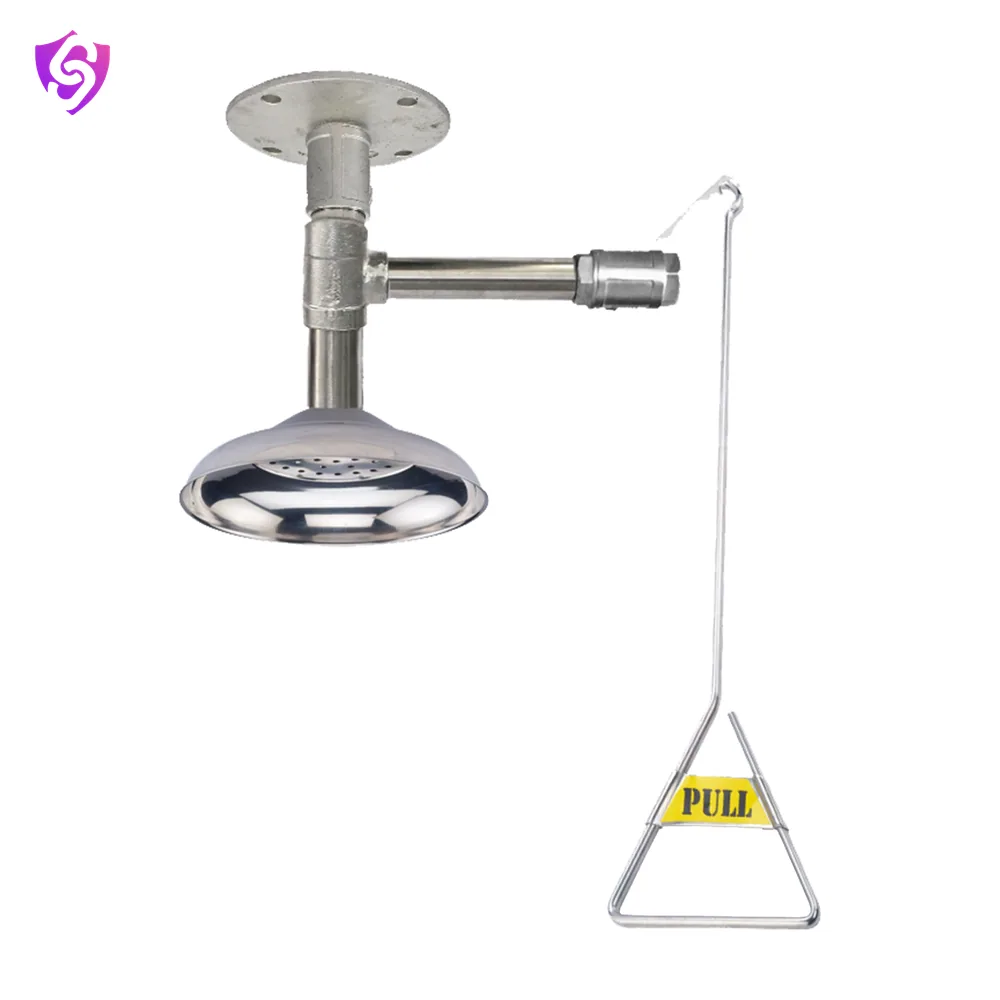

5101 SS eye wash
The emergency is designed for emergency use to provide immediate body rinsing
- Test certificate available on request
Specifications
| Brand | Udyogi |
|---|---|
| Model | 5101 SS |
| Material | SS 304 Material |
| Water Delivery | Delivers a Steady Overhead Water Flow for Quick and Effective Washing |
| Applications | Ideal for Laboratories, Workshops, and Industrial Areas |
| Water Flow | 76 LPM |
| Operating Pressure | 2-3 Kg/cm² |
| Construction | 304 Stainless Steel |
Key features
- Integrated Shower: Provides emergency decontamination for body.
- Material of Construction: Stainless Steel (SS 304).
- Valve Type: Ball Valve.
- Shower Head: SS.
- Valve Type: Stainless Steel Ball Valve.
- Valve Size: 1” Shower.
- Activation Mechanism: Shower activates by Pull Rod.
- Inlet Connection: 1-1/4" BSP (Female Thread).
- Mounting Type: Ceiling.
- Size of Head Shower: 260 mm ± 5 mm.
Applications
- Chemical and fertiliser plants
- Battery rooms
- Laboratories
- Effluent treatment
Care and replacement
Activate plumbed units weekly to flush the line and confirm flow. Keep the area clear and signed.
