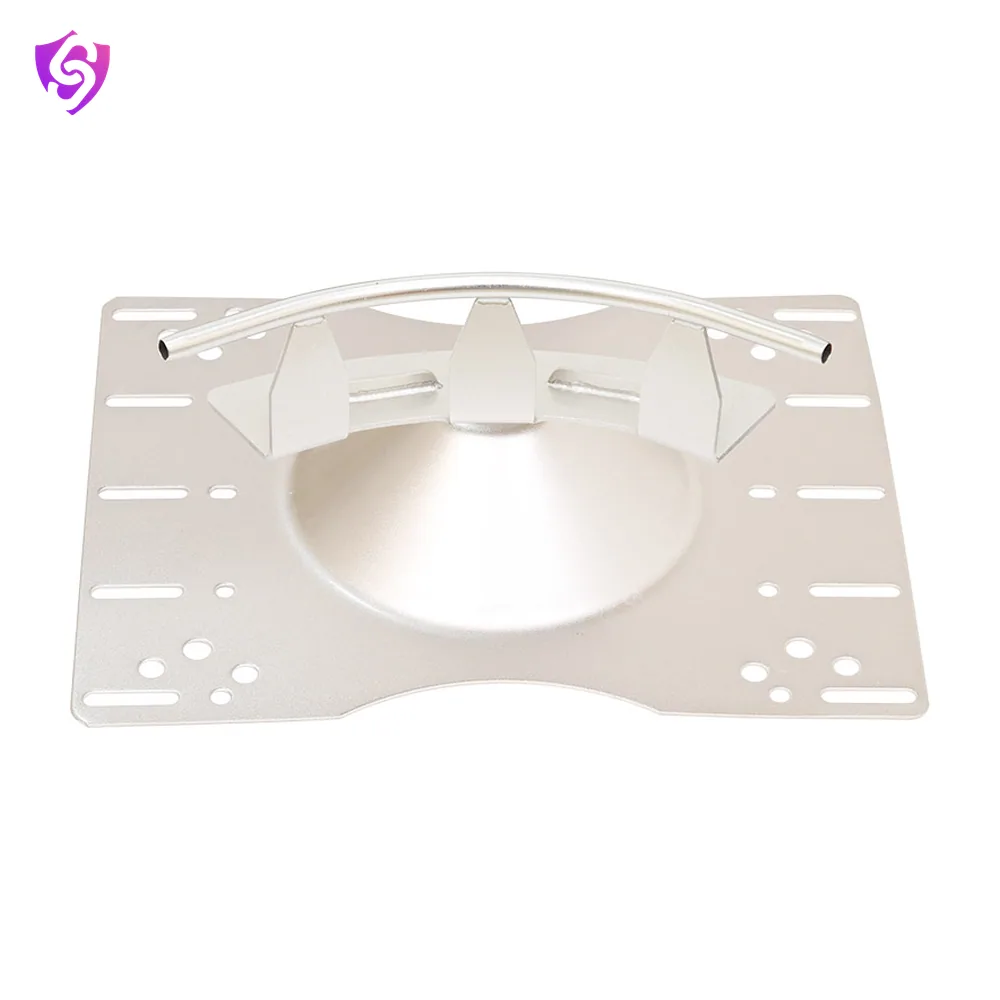

Anchor Plate with Corner Bend

Name: Karam Anchor Plate with Corner Bend
Brand: Karam

The SA 87A(C)(90) 350 Anchor Plate provides robust fall protection at roof corners, especially where extra stability is needed.

Model SA87A(C)(90) 350 EN 795AS/NZS 5532

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA87A(C)(90) 350
Material	Stainless Steel 316
Finish	Polished with ED coated
Weight	2.46 kg
Minimum Breaking Strength	15kN
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type C, AS/NZS 5532:2013

Key features

Corner anchor posts designed to be fixed on the Trapezoidal Roof with help of rivets and self-drilled screws supplied with anchor.
Anchor to be fixed on the peak of Trapezoidal Roof sheet and on purlins.
Corner bend PN4000(21)M will come along with base plate Compatible with pitch from 240mm, 284 to 350mm on Trapezoidal sheets.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
