Karam

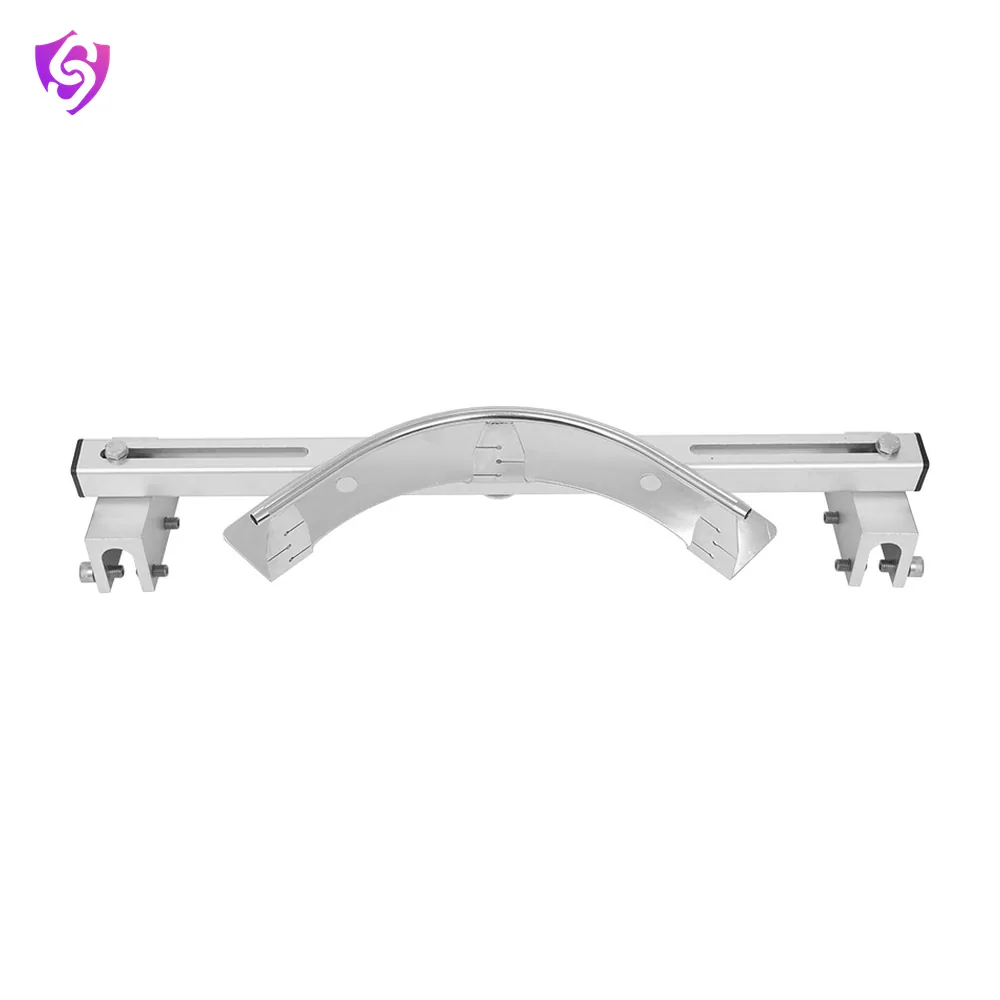

Anchor Post Corner for Standing Seam Roof

Name: Karam Anchor Post Corner for Standing Seam Roof
Brand: Karam

Anchor posts are sturdy, permanent or semi-permanent structures installed on the rooftop or elevated area.

Model SA116S(C)(90) EN 795AS/NZS 5532

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA116S(C)(90)
Material	Aluminium alloy and stainless steel
Installed on	Standing seam
Finish	Electropolished
Breaking Strength	15kN
Weight	3.51kg
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type A, AS/NZS 5532:2013

Key features

Roof Top corner post designed to be fixed on Standing seam roof at bend of horizontal lifeline
The anchor is compatible with 320mm to 640mm seam to seam distance.

Applications

Horizontal Lifeline
Rooftops
Work at Height
Fall Protection
Maintenance
Construction

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
