Karam

Anchor Post Intermediate for Standing Seam Roof

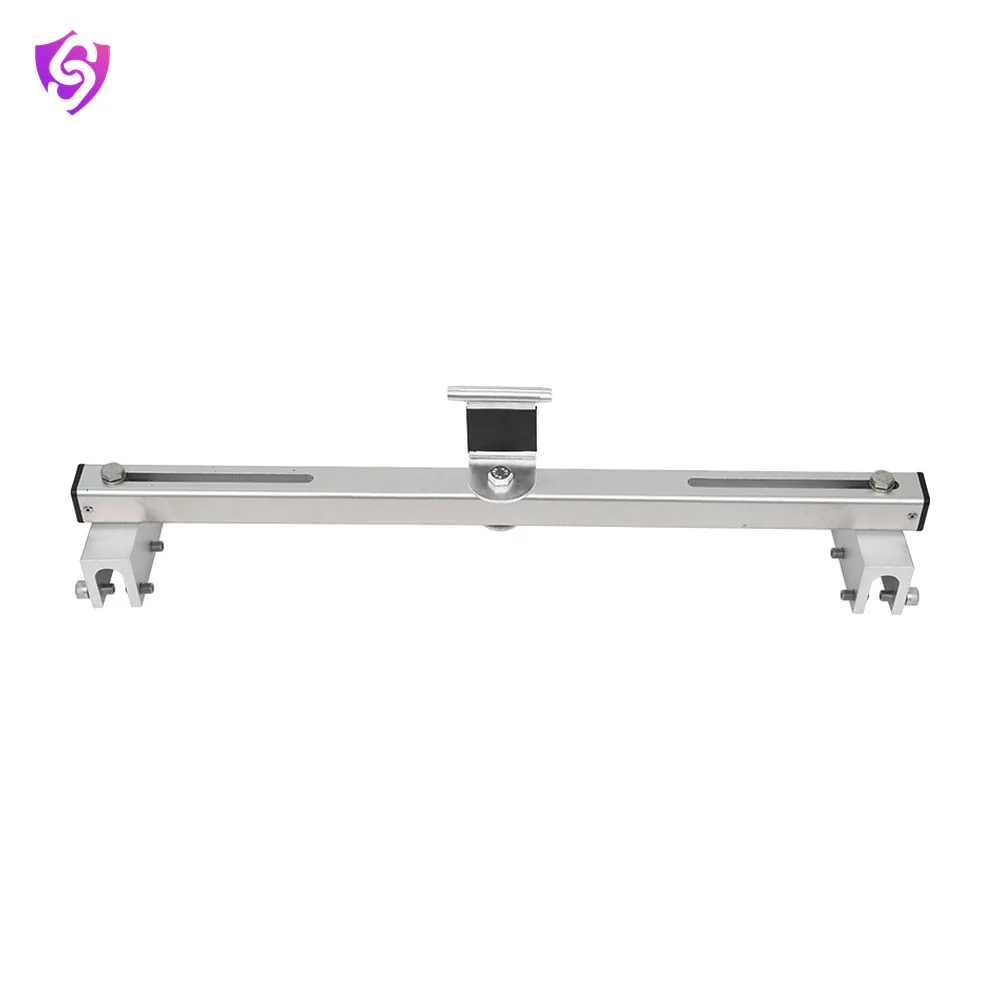

Name: Karam Anchor Post Intermediate for Standing Seam Roof
Brand: Karam

Anchor posts are sturdy, permanent or semi-permanent structures installed on the rooftop or elevated area.

Model SA116S(I)

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA116S(I)
Material	Aluminium alloy and stainless steel
Installed on	Standing seam
Finish	Natural silver/colored anodized
Weight	2.70kg
Breaking Strength	15kN
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .

Key features

Designed to be fixed on standing seam roofs with the help of seam clamps
Anchorage eye on the top provide connection as an intermediate
Can be installed on upto 23mm bulb size on standing seam roof
Compatible with different seam distance between 320mm to 640mm

Applications

Horizontal Lifeline
Rooftops
Work at Height
Fall Protection
Maintenance
Construction

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
