Anchor Post

Name: Karam Anchor Post
Brand: Karam

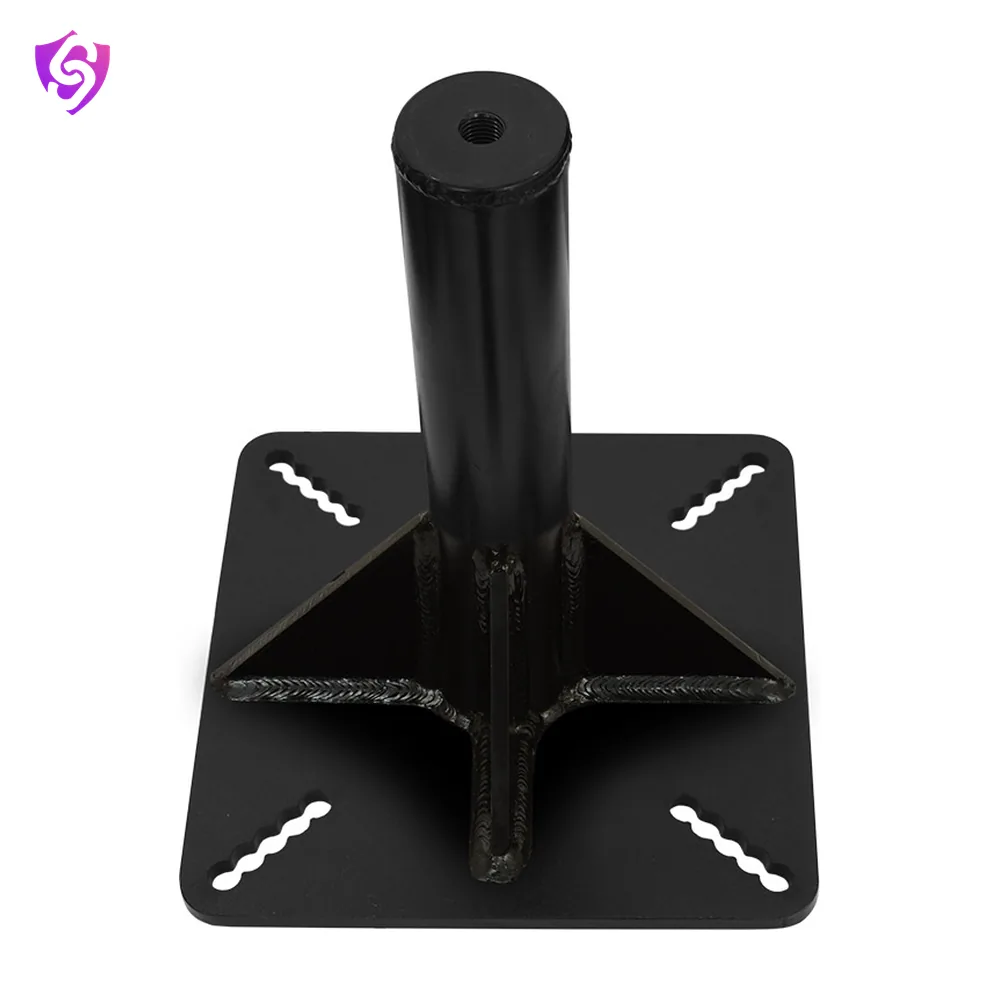

The SA 111 Anchor Post (available in 12" and 18" sizes) is designed for secure attachment to metal I-beams, providing a reliable anchorage point for horizontal lifelines.

Model SA111(12") and (18") ANSI Z359.18

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA111(12") and (18")
Material	Alloy Steel
Finish	Powder Coated Black Electropolished
Weight	7.87kg 9.87kg
Minimum Breaking Strength	23kN
Confirms to	ANSI Z359.18:2017 Type A
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	ANSI Z359.18:2017 Type A

Key features

Anchor designed to be fixed on metal i beam to install horizontal lifeline.
The base have an adjustable opening to adopt to the type of beam section.
Easy and quick to install with help of nut & bolt (M12).
Post comes with M16 tapped bush to fix connectors such as swivel d-ring, eye bolt etc to be used as anchorage point.
Compatible with flange width minimum 150.0mm maximum 220.0mm.

Applications

Horizontal Lifeline
Rooftops
Work at Height
Fall Protection

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
