Karam

Anchor Post

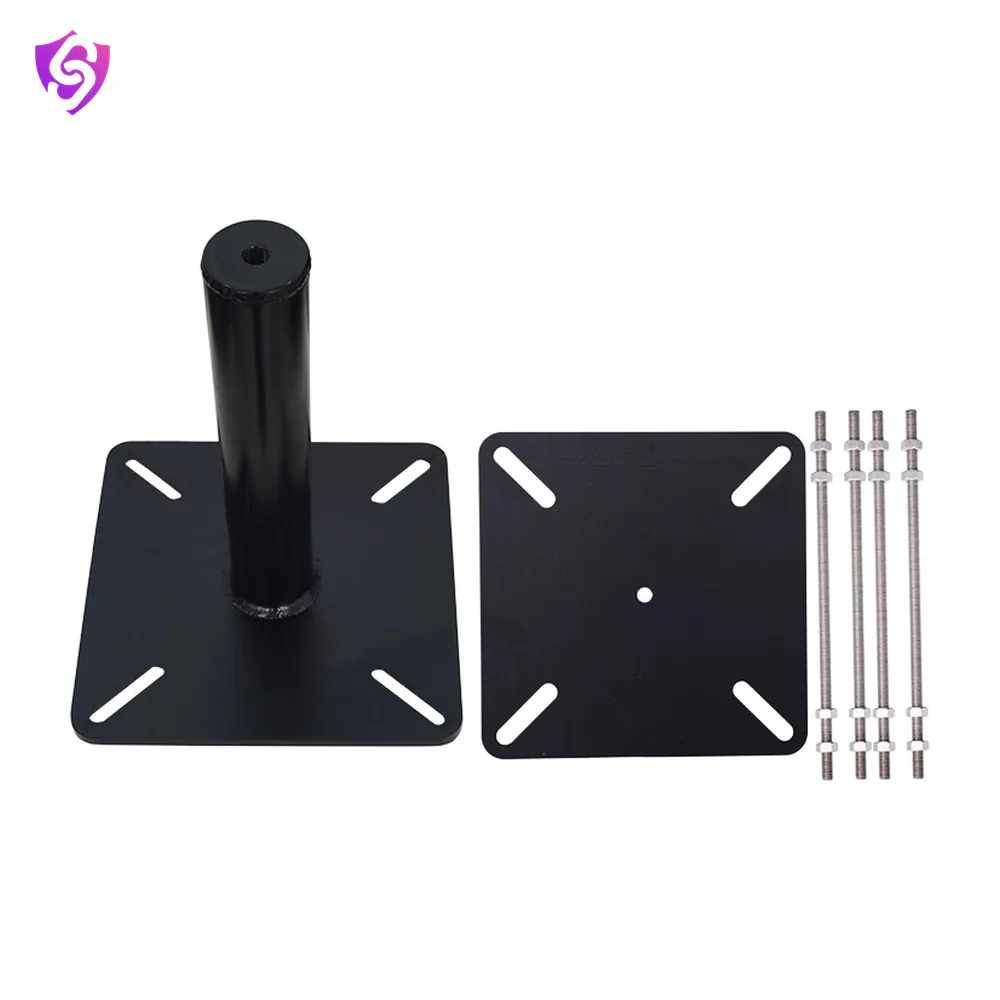

Name: Karam Anchor Post
Brand: Karam

Anchor posts are sturdy, permanent or semi-permanent structures installed on the rooftop or elevated area.

Model SA111(500) EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA111(500)
Material	Alloy steel
Installed on	Metal I-Beam to install horizontal lifeline
Finish	ED coated black
Weight	15.87kg
Breaking Strength	23kN
Min Adjustable Opening	150mm
Max Adjustable Opening	220mm
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type A

Key features

Anchor designed to be fixed on metal I-BEAM to install horizontal lifeline
The base have an adjustable opening to adopt to the type of beam section
Easy and quick to install with help of nut & bolt (M12)

Applications

Horizontal Lifeline
Rooftops
Work at Height
Fall Protection
Maintenance
Construction

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
