Karam

Anchorage Stainless Steel Wire Rope Sling

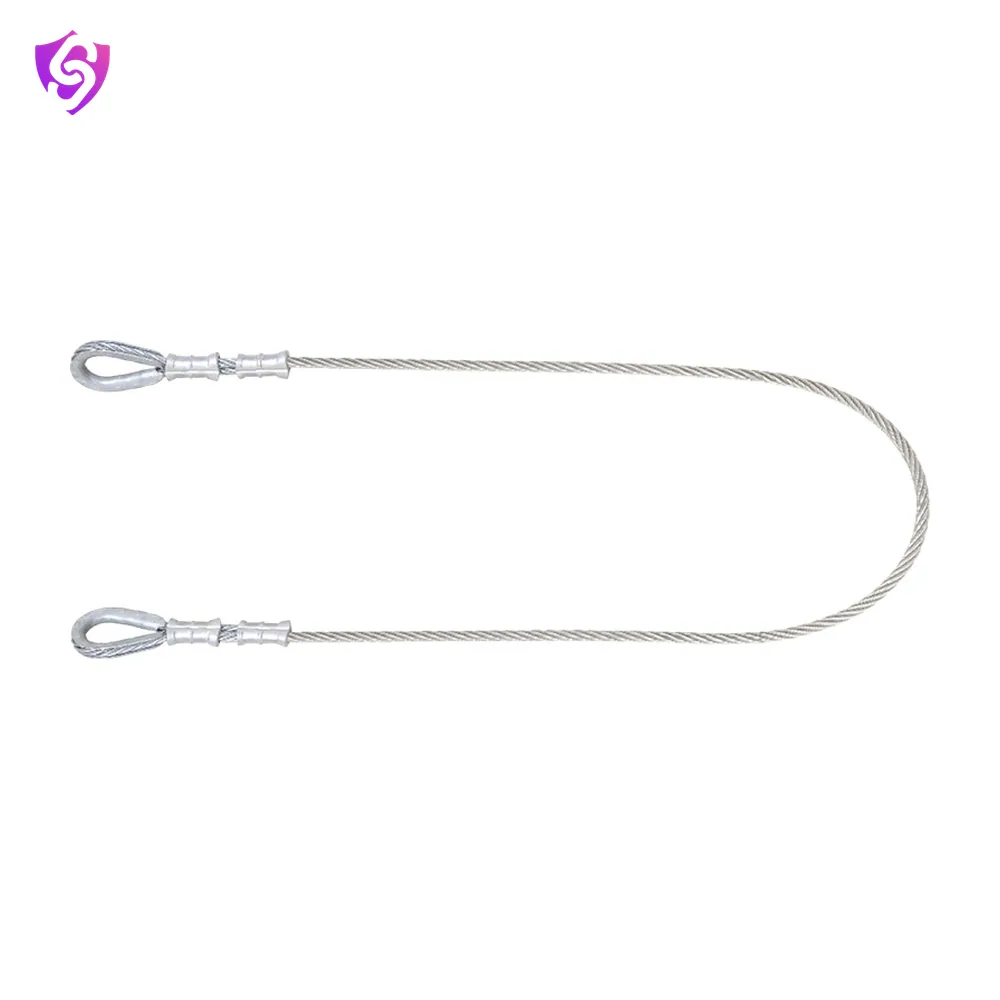

Name: Karam Anchorage Stainless Steel Wire Rope Sling
Brand: Karam

The PN 814 is a simple, durable, and effective solution for creating a secure anchorage point when working at height.

Model PN814 Type B Anchor EN 354EN 795IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN814 Type B Anchor
Material	Stainless steel wire rope of dia 8.0mm
Length	1.0m, 1.5m, 1.8m and 2.0m or as requested
Minimum Breaking Strength	23kN
Attachments	Steel thimbles at both the ends
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	Certified to EN 354:2010 EN 795:2012 Type B IS 3521(Part 7):2021

Key features

Stainless steel wire rope construction for long-lasting strength
Steel thimbles at both ends for secure connections
Flexible design for use around beams, pipes, or fixed structures
Lightweight and portable for easy handling on-site
Provides safe anchorage and enhanced hand protection at height

Applications

Work at Height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
