Karam

Belly Belt

Name: Karam Belly Belt
Brand: Karam

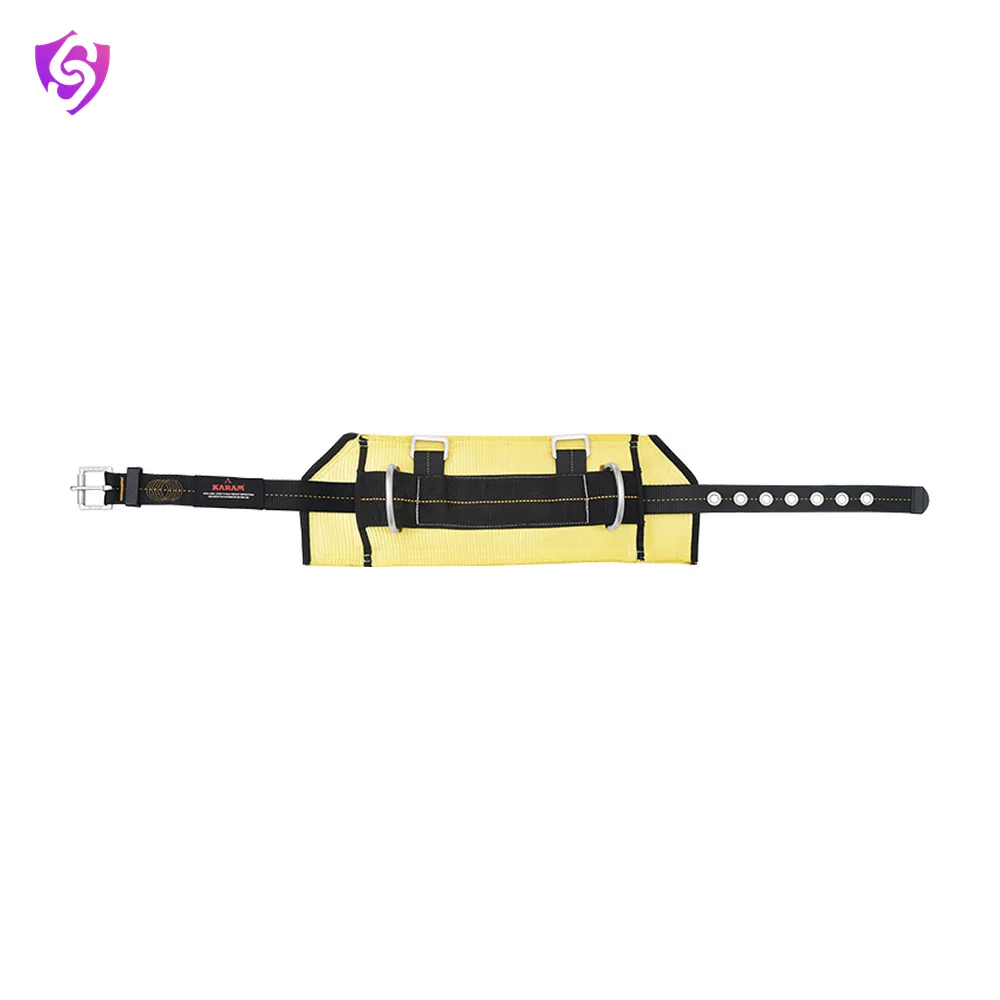

The Belly Belt FAP15500M1 is designed for use with a harness , featuring a 200mm strap for wide coverage.

Model FAP155001M1

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	FAP155001M1
Material	Polyester
Width	44±1mm
Breaking Strength	5000 lbs
Adjustment	7 positions(Grommets)
Weight	1865 gm
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	OSHA 1926.502, 1910.66

Key features

Belly belt is designed to be used with harness &made with 200mm Strap to provide wide coverage
Equipped with mating Frames connecting straps for the upper Torso attachment.
Features 7 adjustment positions (Grommets).
Integrated fixed position Frontal D-rings and ideally suited for throwing pipe in monkey Board positioning applications.

Applications

Oil and Gas Extraction Industries

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
