Karam

C-Channel Assembly for Walk Way on Trapezoidal Roof

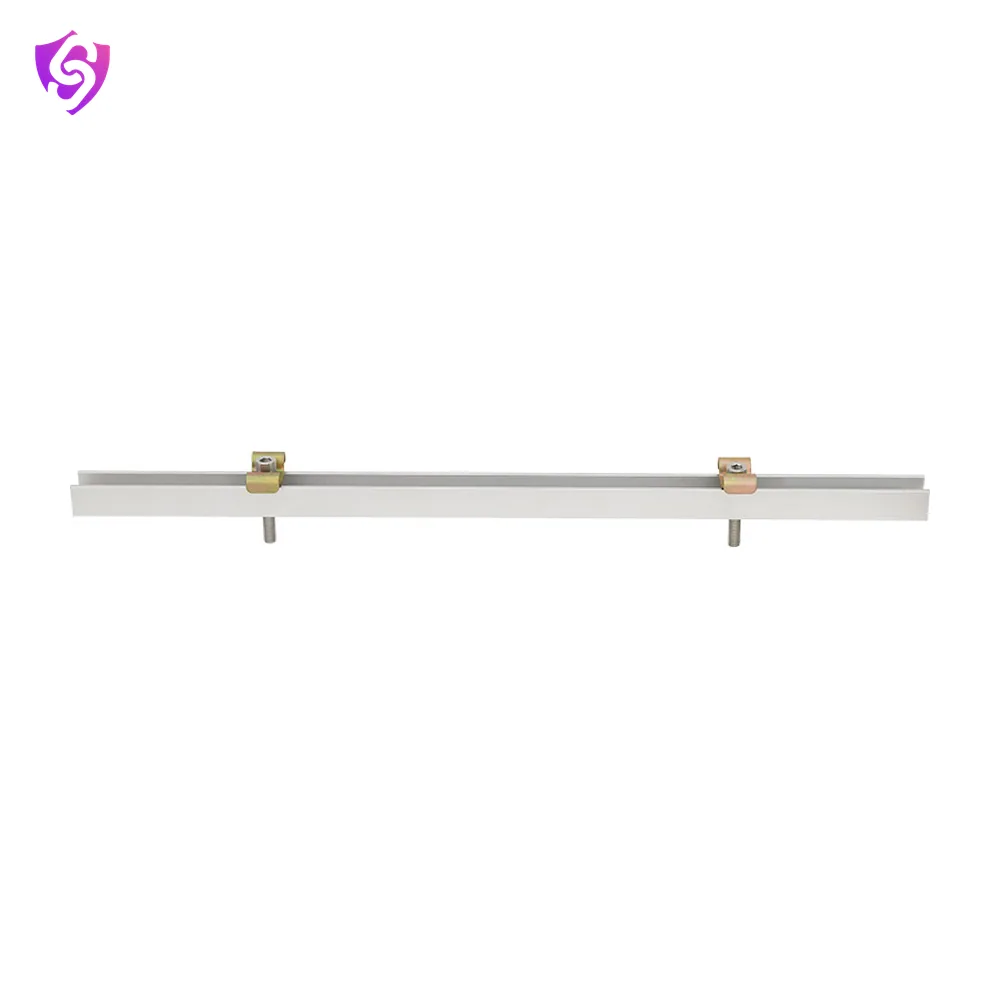

Name: Karam C-Channel Assembly for Walk Way on Trapezoidal Roof
Brand: Karam

The WW 01(29)T C-Channel Assembly is a robust solution for installing walkways on trapezoidal sheet roofs.

Model WW01(29)T

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	WW01(29)T
Material	(C-Channel and Brackets) : Aluminium (Fixation Clamps and Fasteners) : Stainless Steel
Finish	(C-Channel and Brackets) : Anodized (Fixation Clamps and Fasteners) : Electropolished / E Coated
Weight	1.20 kgs. ± 0.05 kgs
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .

Key features

C‑Channel assembly is designed to install the walkway on trapezoidal sheet roof.
Can be used after drilling on different pitches up to 610.0mm.
Comes with pop rivet to fix the channels on trapezoidal roof & also with fixation clamps to fix the walkway on it.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
