Constant Force Energy Absorber Extremity for Standing Seam Roof

Name: Karam Constant Force Energy Absorber Extremity for Standing Seam Roof
Brand: Karam

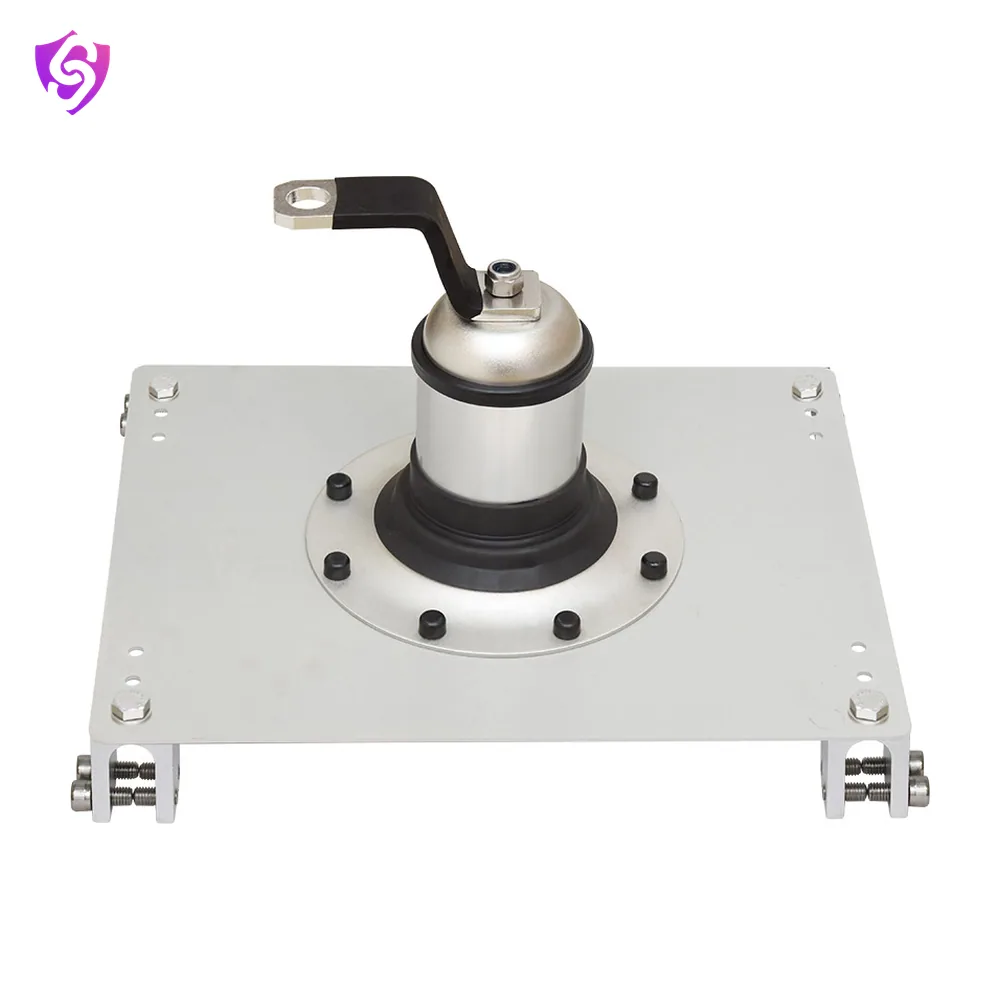

The SA 51A(E)N is a robust constant force energy absorber extremity post designed for fall protection on standing seam roofs.

Model SA51A(E)N EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA51A(E)N
Material	Stainless Steel
Finish	Electropolished / ED Coated
Weight	4.67 kg ± 0.05 kg
Minimum Breaking Strength	15kN
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN795:2012 Type A TS16415:2013 Type A

Key features

Extremity post designed for 4 users to be installed on variety of standing seam roof.
It is designed to be installed on standing seam roof top with help of specially designed fixed clamps & supplied fasteners.
Easy and quick to install with help of fixed block that accommodate bulb size up to 23.0mm.
Compatible with Aluminium rebar hook (PN 1005).
The post deploys in event of a fall to absorb the energy hence leaves the roof panel intact to maintain architectural integrity.
Comes with series of holes to adopt different metal pitched roof. It is compatible with below mentioned pitch:- 300.0 mm, 400.0 mm.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
