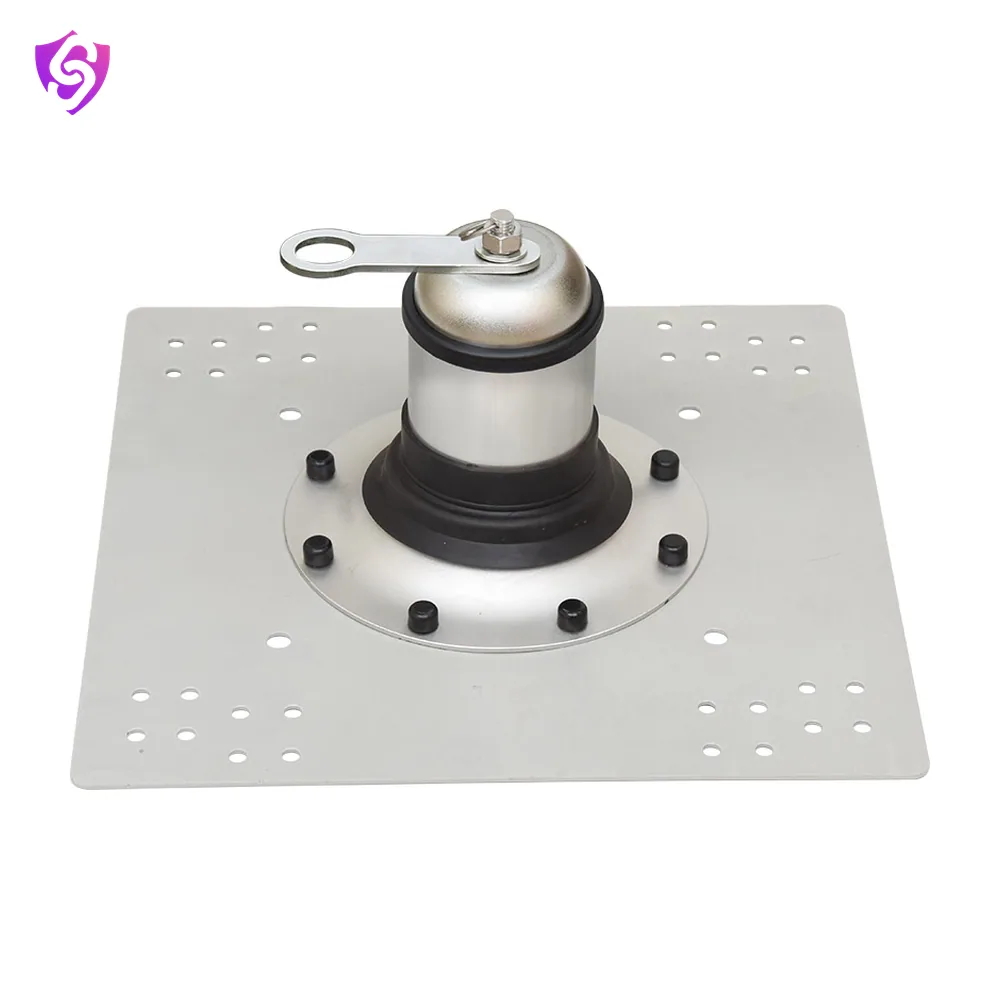

Constant Force Energy Absorber Extremity for Trapezoidal Roof

Name: Karam Constant Force Energy Absorber Extremity for Trapezoidal Roof
Brand: Karam

The SA 38A(E)N Constant Force Energy Absorber Extremity is a durable anchor post for trapezoidal rooftops, engineered to accommodate up to four users simultaneously, ensuring effective fall protection.

Model SA38A(E)N EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA38A(E)N
Material	(Shock absorber assembly)- Stainless Steel, (Base plate)- Aluminium Alloy
Installed on	Standing Seam
Finish	Electropolished / ED Coated
Weight	3.74 kg ± 0.05 kg
Minimum Breaking Strength	15kN
Conforms to	EN795:2012 Type A TS16415:2013 Type A
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN795:2012 Type A, TS16415:2013 Type A

Key features

Extremity post designed for 4 users & to be installed on trapezoidal roof top.
Easy and quick to install.
The post deploys in event of a fall to absorb the energy hence leaves the roof panel intact to maintain architectural integrity.
Comes with series of holes to adopt different trapezoidal roof. It is compatible with below mentioned pitch:- 200, 250, 275, 300, 304, 334, 347, 367 mm

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
