Karam

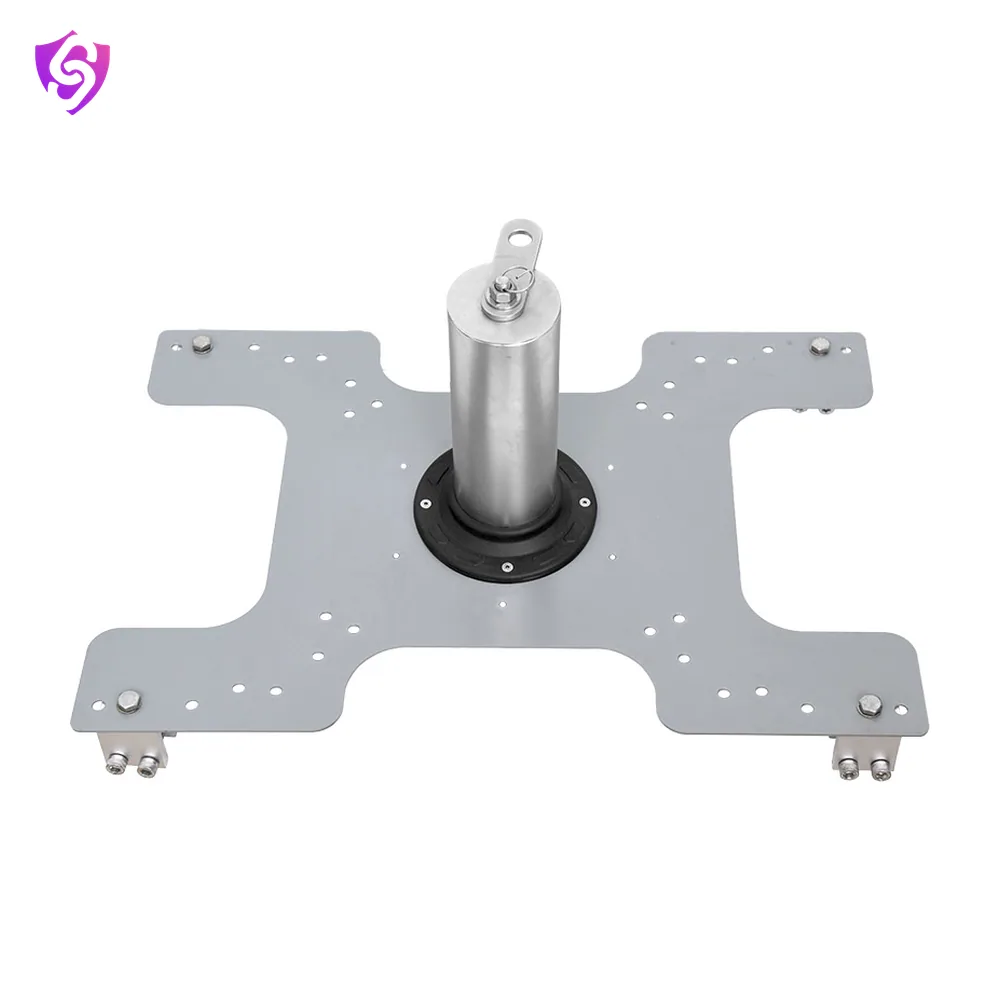

Constant Force Energy Absorber Extremity with Swivel Eye for Standing Seam Roof

Name: Karam Constant Force Energy Absorber Extremity with Swivel Eye for Standing Seam Roof
Brand: Karam

Anchor posts are sturdy, permanent or semi-permanent structures installed on the rooftop or elevated area.

Model SA51A(E)(SW) EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA51A(E)(SW)
Material	SS grade 316
Installed On	Standing seam roof
Finish	Electro polished
Weight	10.0kgs
Breaking Strength	15kN
Max. Users	4
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type A TS16415:2013 (for upto 4 User)

Key features

SA 51A is designed with an inbuilt shock absorption mechanism which activates in the event of a fall and reduces the forces on the user
Easy and quick to install
Comes with a swivel eye for 360° rotation
The post deploys in the event of a fall to absorb the energy and hence protects the roof from damage
The base plate has series of holes to fit on standing seam roof with different seam distance between 250mm to 650mm

Applications

Horizontal Lifeline
Rooftops
Work at Height
Fall Protection
Maintenance
Construction

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
