Karam

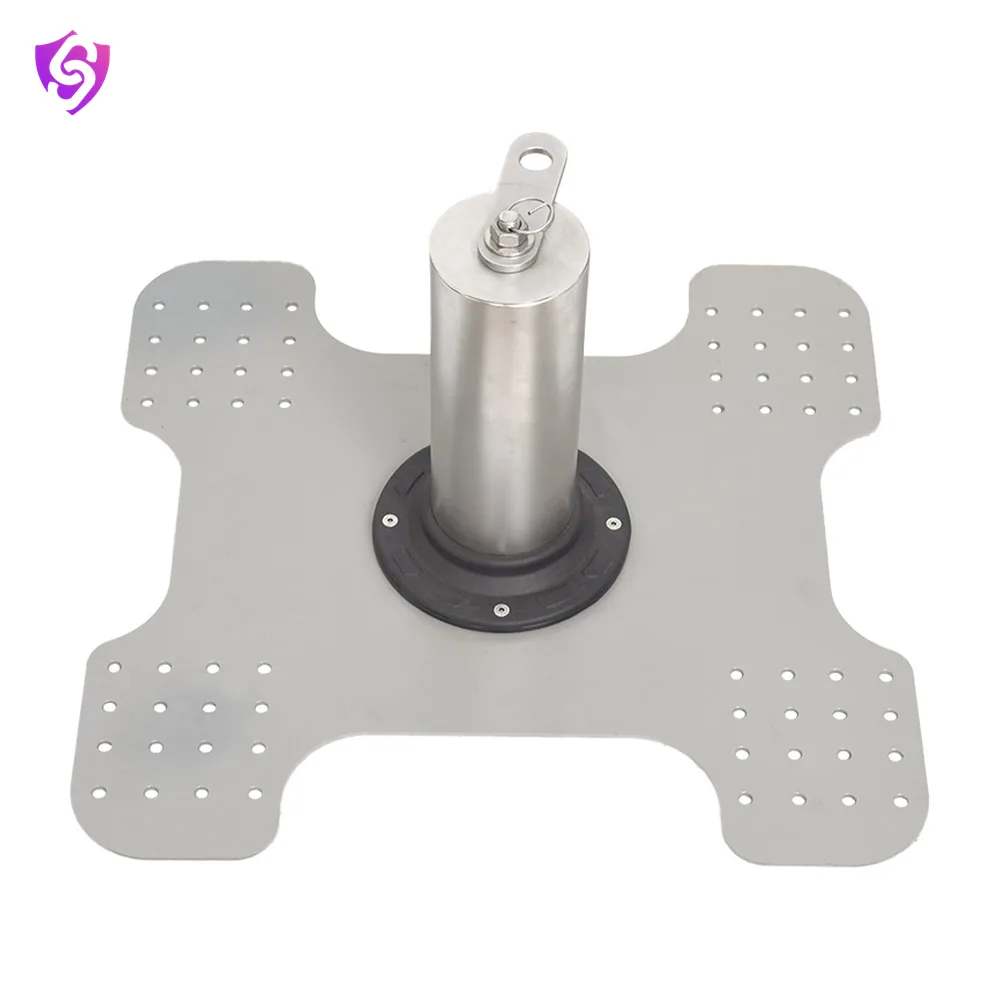

Constant Force Energy Absorber Extremity with Swivel Eye for Trapezoidal Roof

Name: Karam Constant Force Energy Absorber Extremity with Swivel Eye for Trapezoidal Roof
Brand: Karam

Anchor posts are sturdy, permanent or semi-permanent structures installed on the rooftop or elevated area.

Model SA38A(E)(SW) EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA38A(E)(SW)
Material	SS grade 316
Installed on	Galvolume/trapezoidal sheets of different pitch/rib
Finish	Electro polished
Breaking Strength	15kN
Weight	12.71kg
Max. Users	4
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type A TS16415:2013 (for upto 4 user)

Key features

Designed with an inbuilt shock absorption mechanism which activates in the event of a fall and rescues the forces on the users
Easy and quick to install
Comes with a swivel eye for 360° rotation
The post deploys in the event of a fall to absorb the energy and hence protects the different pitch/rib.
Comes with series of holes to adopt different metal pitched roof. It is compatible with below mentioned pitch:- 217mm, 275mm, 285mm, 333mm, 347mm, 397mm, 405mm and 465mm

Applications

Horizontal Lifeline
Rooftops
Work at Height
Fall Protection
Maintenance
Construction

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
