Corner Piece for Floor/Ceiling 90

Name: Karam Corner Piece for Floor/Ceiling 90
Brand: Karam

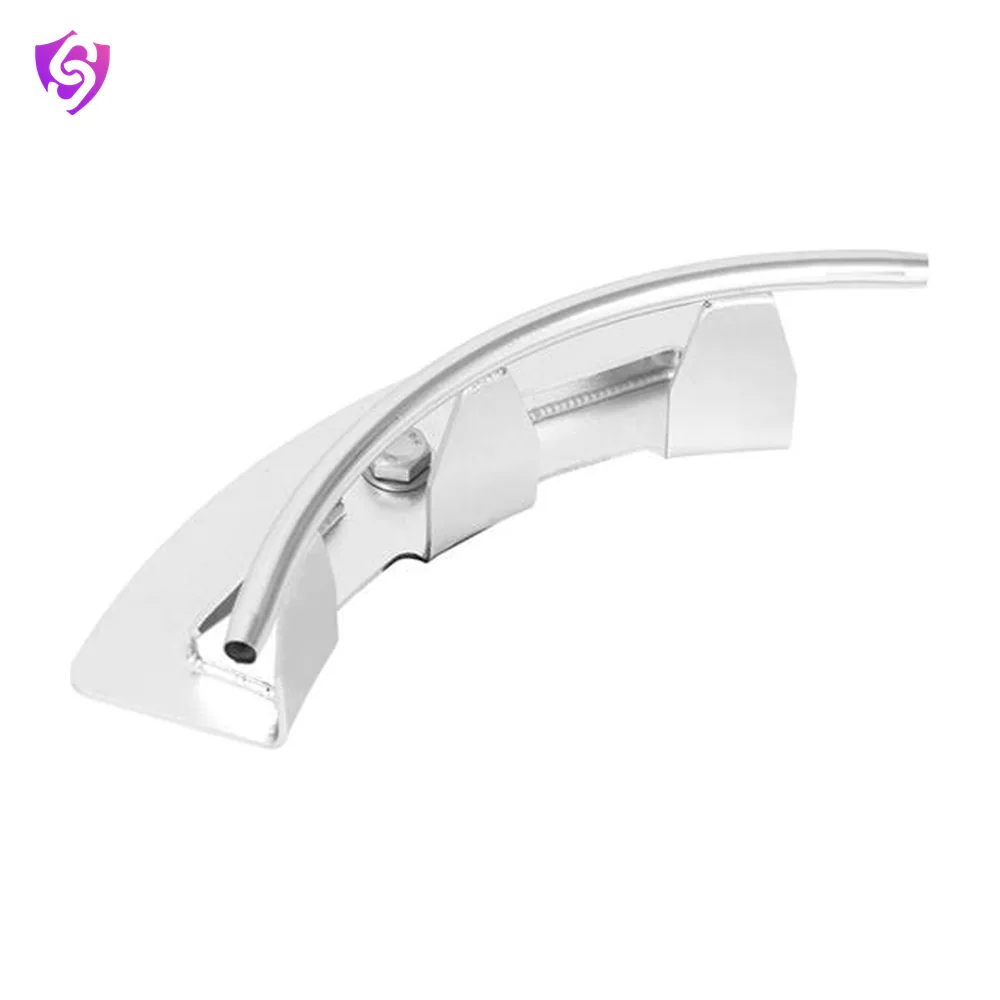

The Corner Piece for Floor/Ceiling 90° PN 4000(21)M 90 is designed for secure attachment to ceilings or concrete roofs, in conjunction with a horizontal lifeline.

Model PN4000(21)M 90 EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN4000(21)M 90
Material	SS Grade 316
Installed on	Standing seam roof
Finish	Electro Polished
Weight	0.87kgs± 10.0gms
Minimum Breaking Strength	15kN
Conforms to	EN795:2012 Type C TS16415:2013 Type C
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN795:2012 Type C TS16415:2013 Type C

Key features

Corner piece designed to be fixed on ceiling /over the concrete roof in conjunction with horizontal lifeline (PN 4000).
Comes with M12 fasteners for installation.
Available in : 90°

Applications

Industrial sites
Construction Site

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
