Karam

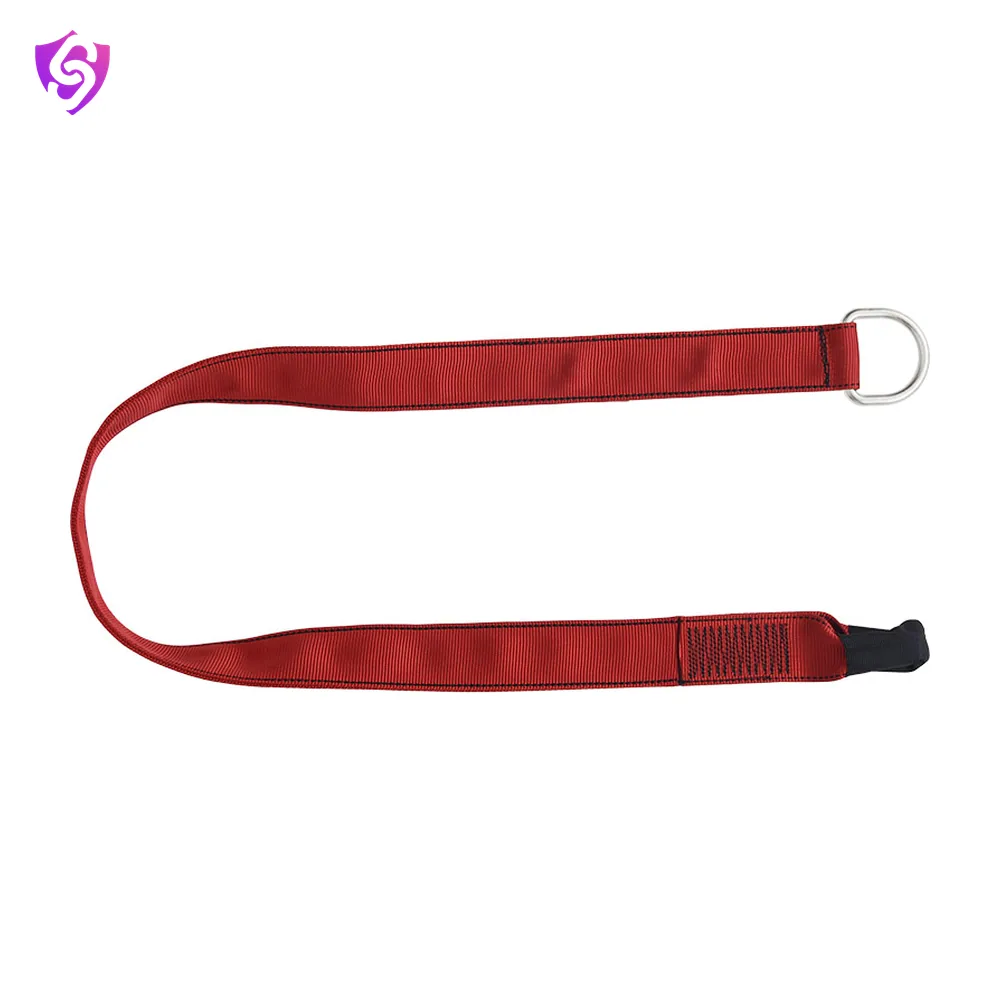

Cross Arm Anchor Strap

Name: Karam Cross Arm Anchor Strap
Brand: Karam

The PN 803 is a lightweight and durable anchorage solution designed to create a safe tie-off point for work at height.

Model PN803 Type B Anchor EN 795AS/NZS 5532IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN803 Type B Anchor
Material	44mm wide Polyester webbing
Length	1.2m or as requested
Minimum Breaking Strength	18kN for 3 minutes
Attachments	D-ring at one end and textile loop at the other end
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 795:2012 Type B, AS/NZS 5532:2013, IS 3521(Part 7):2021

Key features

High-strength polyester webbing with reinforced stitching
Loop and alloy steel D-ring for secure connections
Lightweight design for easy portability and use
Quickly wraps around beams, pipes, or fixed structures
Provides reliable hand protection and safety at height

Applications

Work at Height
Concrete Structure

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
