Karam

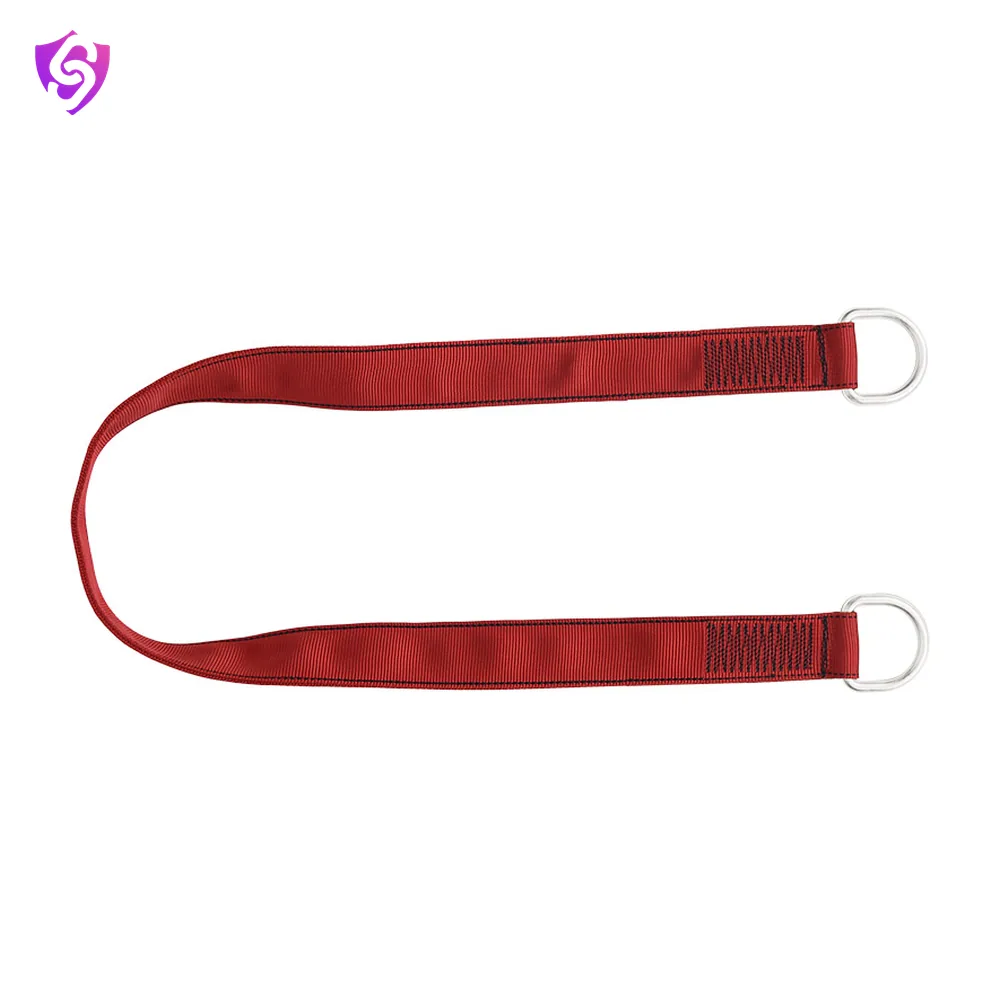

Cross Arm Anchor Strap

Name: Karam Cross Arm Anchor Strap
Brand: Karam

The PN 804 is a simple, reliable, and versatile anchorage solution designed for height safety.

Model PN804 Type B Anchor EN 795AS/NZS 5532EN 566IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN804 Type B Anchor
Material	44mm wide Polyester webbing
Length	1m, 1.5m and 2m or as requested
Minimum Breaking Strength	18kN for 3 minutes
Attachments	Has a D-ring on both the ends
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 795:2012 Type B, AS/NZS 5532:2013, EN 566:2017, IS 3521(Part 7):2021

Key features

Durable polyester webbing with reinforced stitching
Alloy steel D-rings on both ends for secure connections
Lightweight and easy to transport on-site
Wraps quickly around beams, pipes, or fixed structures
Provides dependable anchorage and reliable hand protection

Applications

Work at Height
Concrete Structure

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
