Karam

Cross Arm Anchor Strap

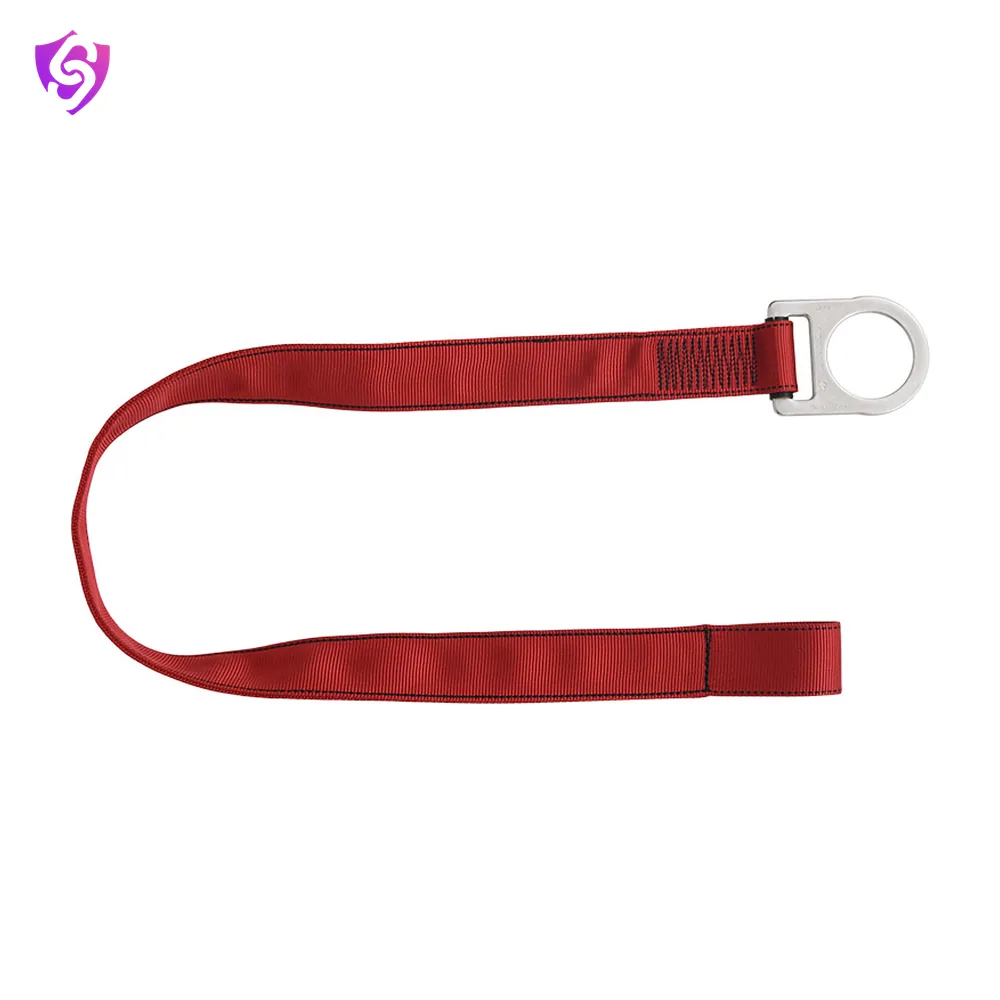

Name: Karam Cross Arm Anchor Strap
Brand: Karam

The PN 805 is a dependable anchorage connector designed to provide safe tie-off points for workers at height.

Model PN805 Type B Anchor EN 795AS/NZS 5532IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN805 Type B Anchor
Material	44mm wide Polyester webbing
Length	1.07m or as requested
Minimum Breaking Strength	18kN for 3 minutes
Attachments	D-ring at one end and textile loop at the other end. Provided with a Polyester covering on the load-bearing face of the webbing, for abrasion resistance
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 795:2012 Type B, AS/NZS 5532:2013, IS 3521(Part 7):2021

Key features

Durable polyester webbing with reinforced stitching
Textile loop at one end and steel D-ring at the other
Lightweight design for portability and ease of use
Wraps securely around beams, pipes, or fixed structures
Provides dependable safety and enhanced hand protection at height

Applications

Work at Height
Concrete Structure

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
