Karam

Cross Arm Anchor Strap

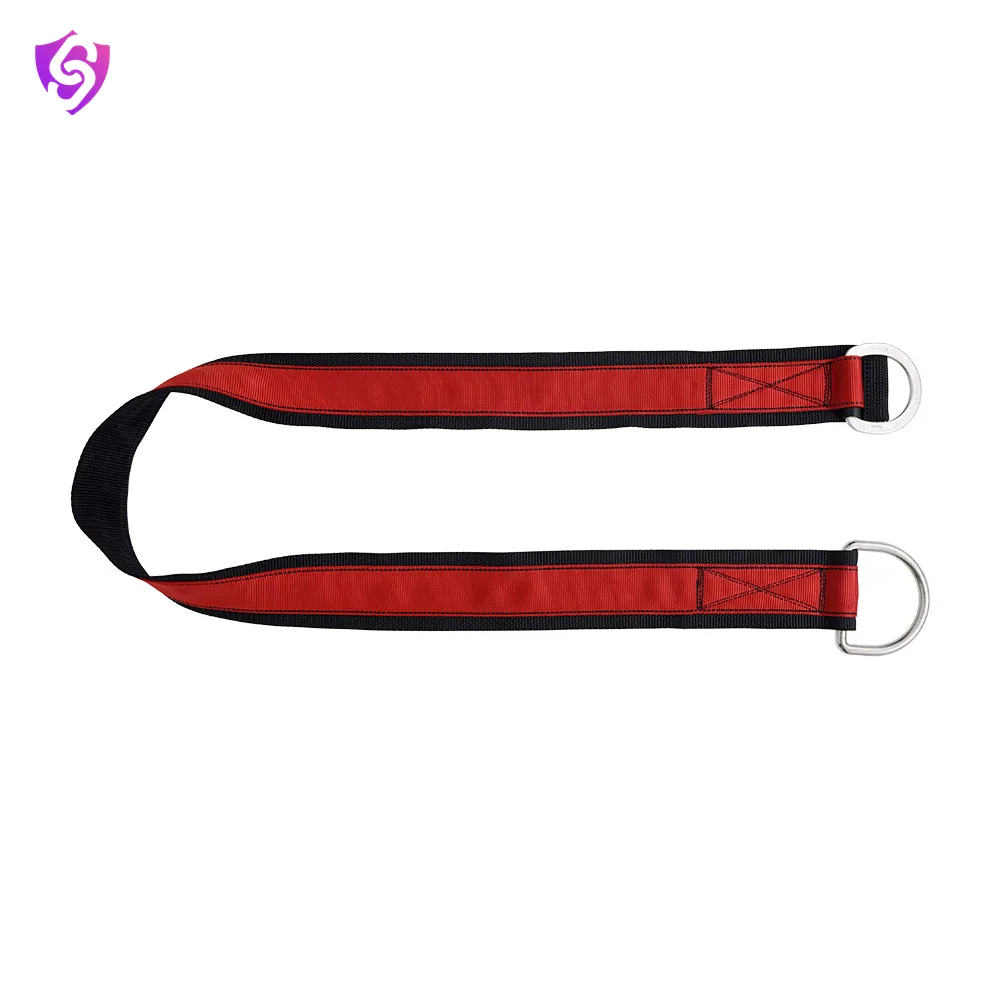

Name: Karam Cross Arm Anchor Strap
Brand: Karam

The PN 806 is a reliable anchorage connector designed to create a safe tie-off point for workers at height.

Model PN806 Type B Anchor EN 795AS/NZS 5532IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN806 Type B Anchor
Material	44mm wide Polyester webbing
Length	1.0m, 1.5m and 2.0m or as requested
Minimum Breaking Strength	18kN for 3 minutes
Attachments	Small D-ring on one end and a bigger D-ring on the other
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 795:2012 Type B, AS/NZS 5532:2013, IS 3521(Part 7):2021

Key features

Made of high-strength polyester webbing with reinforced stitching
Small and large D-rings for flexible and secure connections
Protective design enhances durability and reduces wear
Lightweight and portable for ease of use on-site
Provides safe anchorage and dependable hand protection at height

Applications

Work at Height
Concrete Structure

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
