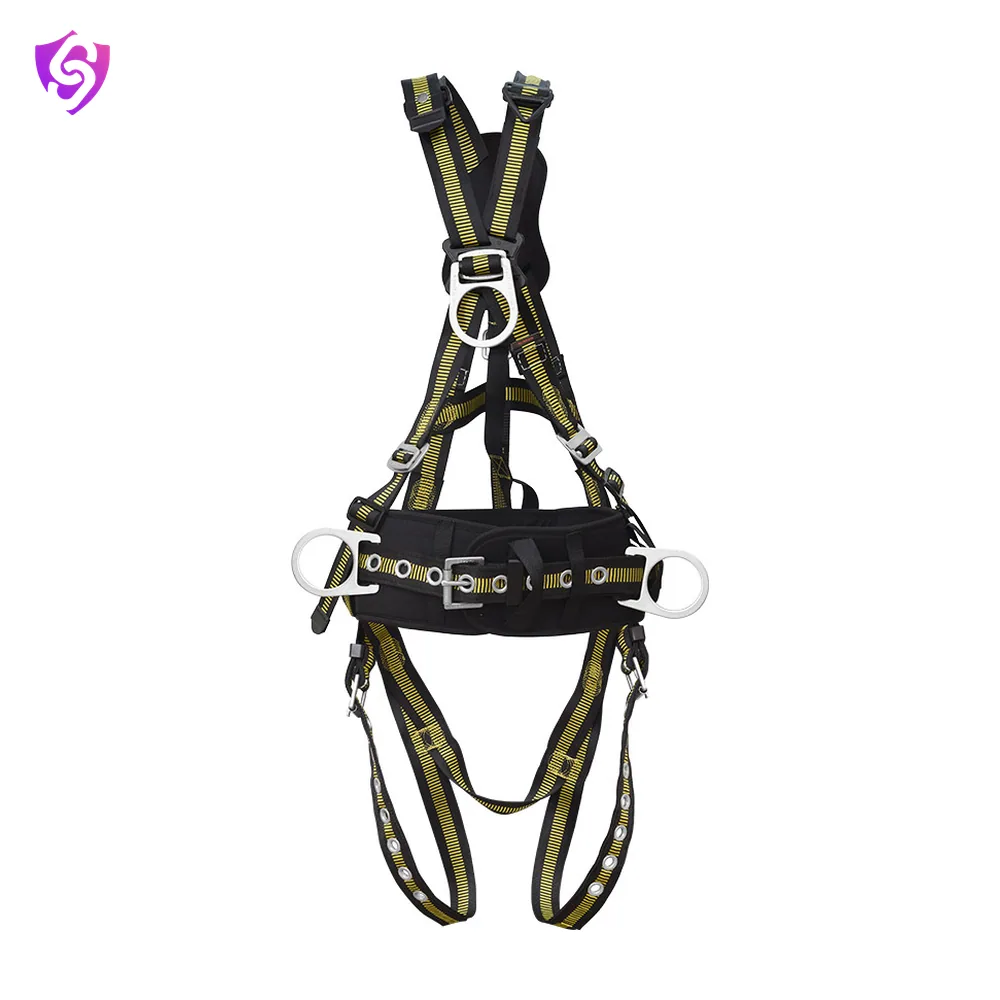

Crossover Full Body Harness with 5 D-Rings

Name: Karam Crossover Full Body Harness with 5 D-Rings
Brand: Karam

The FAP15509EDB Crossover Full Body Harness with 5 D-Rings is specially designed for derrick climbing and positioning applications.

Model FAP15509EDB ANSI Z359.11

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	FAP15509EDB
Material	Polyester
Application	Fall Arrest + Restraint
Attachments	3 Point
Weight	2.850 kg(6.283lbs.)
Adjustability	9 Adjustment Position
Breaking Strength	3600 lbs
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	ANSI Z359.11-2021, OSHA 1926.502, 1910.66

Key features

Unique combination of 5 D-Rings to address multiple user applications involved with Derrick climbing and positioning.
Padded waist belt for user comfort.
Tongue buckle legs are uniquely equipped with 9 grommeted adjustment
Position for wide range of fit.

Applications

Oil and Gas Extraction Industries

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
