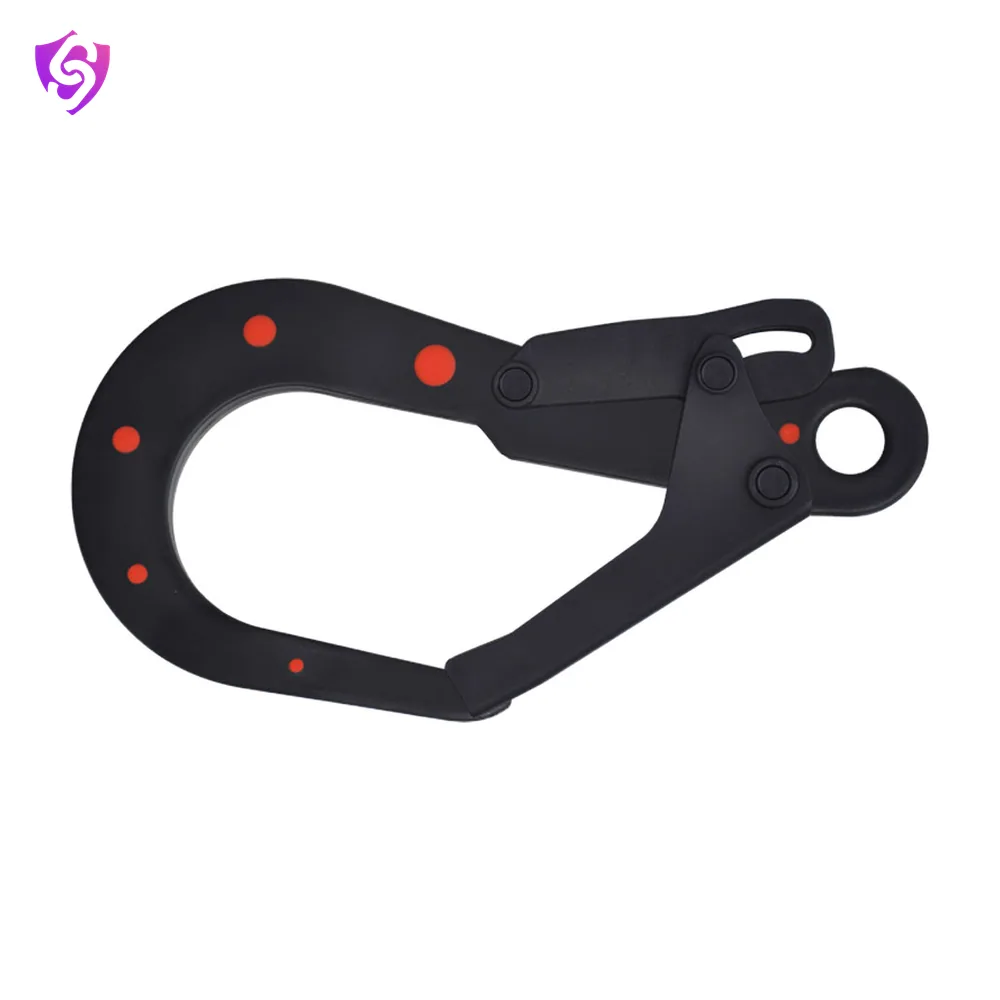

Dielectric Scaffold Hook

Name: Karam Dielectric Scaffold Hook
Brand: Karam

The PN 166 Di-Electric Hook is engineered for workers who require both reliable strength and electrical insulation in demanding environments.

Model PN166 EN 362

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN166
Material	Specially compounded Polymer with steel reinforcement
Gate Opening	57.0mm
Minimum Breaking Strength	23kN
Net Weight	560.0gm
Finish	Moulded
Minimum Dielectric Resistance	14kV
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 362:2004 Class T

Key features

Polymer body with steel reinforcement for strength and safety
Auto-closing and auto-locking spring mechanism
Dielectric resistance up to 14 kV for electrical protection
Minimum breaking strength of 23kN
Lightweight design, approx. 380 g

Applications

Fall Protection
Rope Access
Mountaineering
Rescue

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
