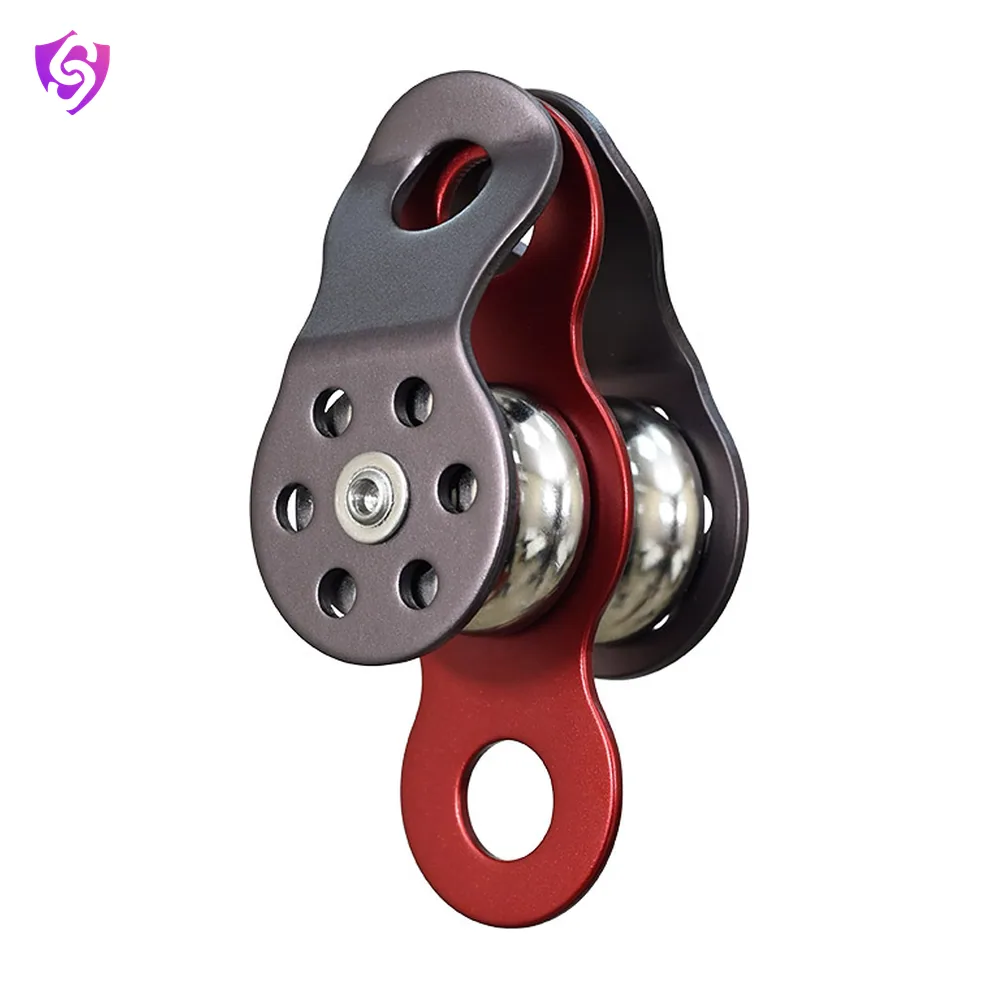

Double Pulley Small on Ball Bearing with Two Side attachments

Name: Karam Double Pulley Small on Ball Bearing with Two Side attachments
Brand: Karam

The double pulley small on ball bearing with two side attachments is a versatile mechanical component designed for smooth and efficient operation.

Model AP017(SSBB) EN 12278

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	AP017(SSBB)
Material	Side cover: Aluminium alloy, sheaves: stainless steel
Works on	Rope/Wire of dia 12.0mm
Weight	262.0gms
Minimum Breaking Strength	25kN
Finish	Covers-anodized sheaves-polished
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	Certified to EN 12278:2007, UIAA

Key features

Minimum breaking strength: 25kN
Finish: Cover-colored anodized; sheaves:polished
Can be used on a rope of dia 12mm

Applications

Fall Arrest
Rope Access
Mountaineering

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
