Karam

Evac - R

Name: Karam Evac - R
Brand: Karam

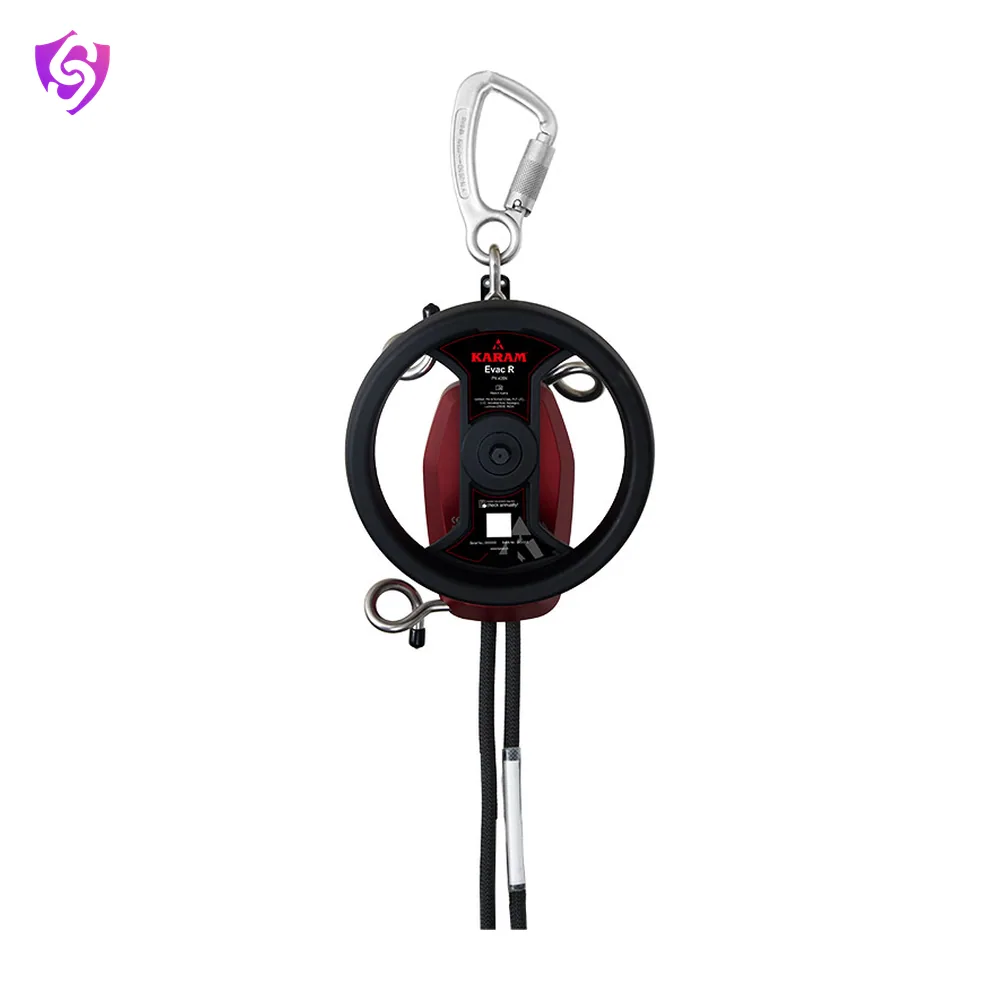

The Evac- R PN408N is a versatile and reliable rope access system designed for high ascents.

Model PN408N EN 341EN 1496EN 12841IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN408N
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 341: 2011-1 A (2 Persons), EN 341: 2011-1 B (3 Persons), EN 1496:2017-B, EN 12841 Type C, ANSI Z 359.4:2013, IS 3521(Part-9):2021

Key features

Rope Termination: Ends with double figure of 8 knots for connection with Karabiner.
Brake System: Automatic and redundant.
Usable with Electric Screwdriver: For high ascents.
Maximum no. of users: 3 users

Applications

Telecom
Electrical Tower

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
