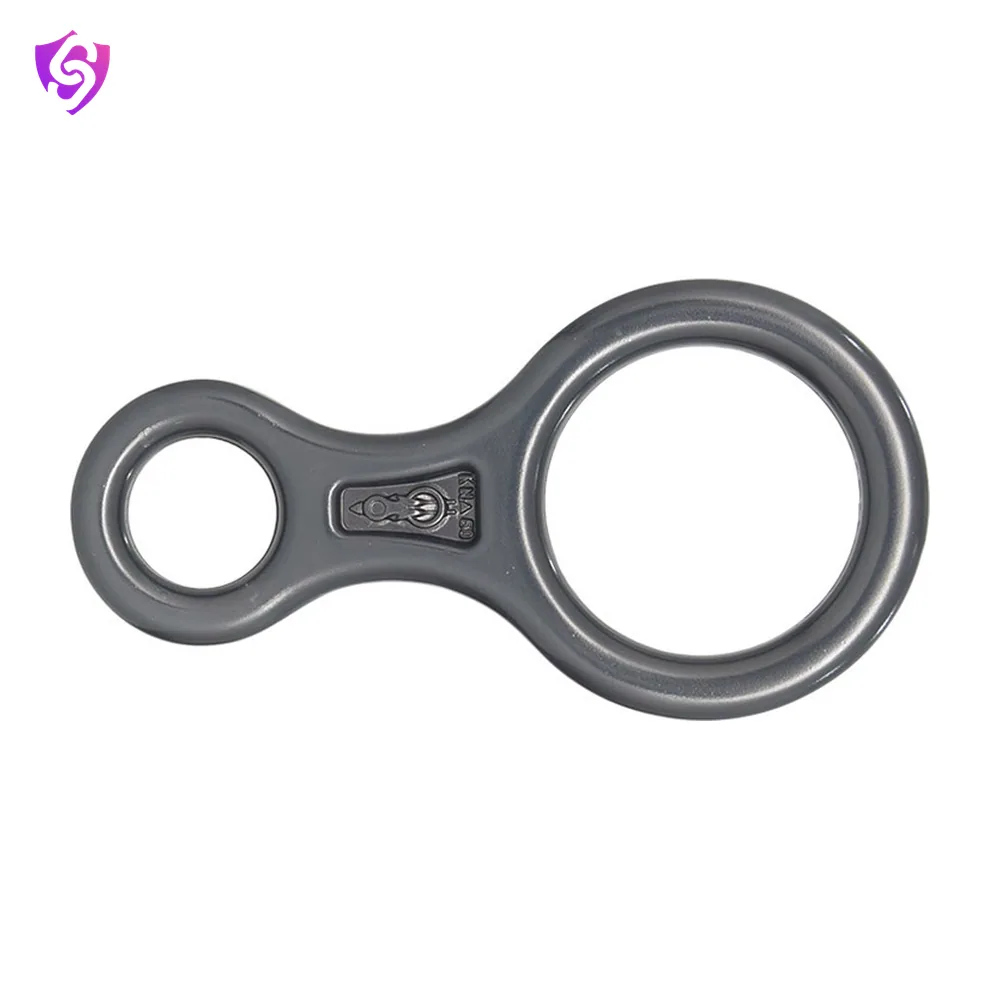

Figure of 8

Name: Karam Figure of 8
Brand: Karam

The PN431 Figure of 8 is a simple yet highly reliable device used for belaying, lowering, and controlled descent during rope-based activities.

Model PN431 EN 341EN 12841EN 15151

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN431
Material	Aluminium alloy
Inner Dia	Big: 52mm Small: 26mm
Height	145mm
Minimum Breaking Strength	50kN
Conforms to	EN 15151-2:2012
Weight Holding Capacity	Upto 136.0kg
Finish	Natural silver, coloured, anodized
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 341 Type 2 Class B EN 12841:2006 Type C

Key features

Enables controlled belaying and lowering by maintaining tension on the brake strand
Helps regulate descent speed through simple rope handling
Rope is threaded through the central hole for easy and secure setup
Supports smooth and stable movement during climbing, rappelling, and similar tasks

Applications

Fall Arrest
Rope Access

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
