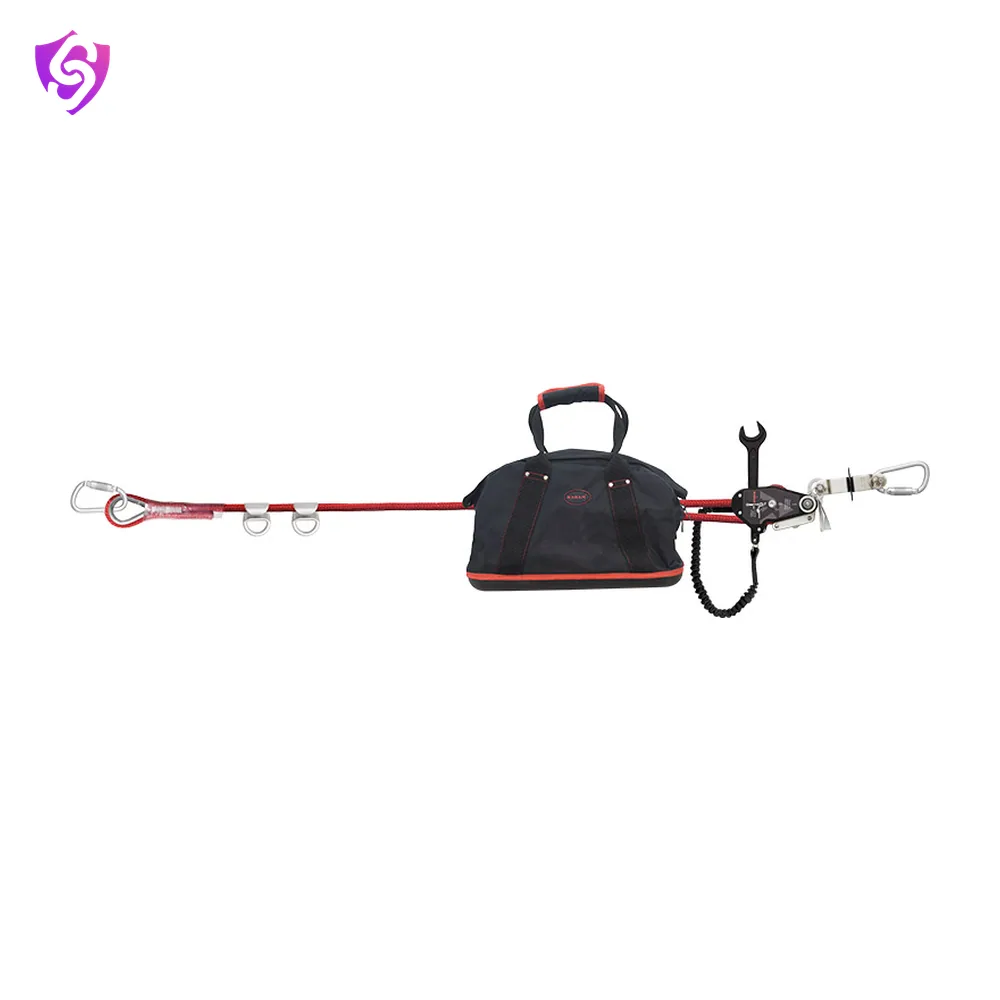

Horizon 2 Man Temporary Horizontal Rope Anchorage Line

Name: Karam Horizon 2 Man Temporary Horizontal Rope Anchorage Line
Brand: Karam

The Horizon PN3002(C) is a compact and ready-to-use horizontal lifeline solution designed for two users working at height.

Model Horizon PN3002(C) EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	Horizon PN3002(C)
Rope Type	Kernmantle rope of dia 16mm
Material of Tensioner	Galvanized steel
Attachment Ends	One end-stitched loop with PN113 other end-tension indicator with PN113
Anchorage Type	Cross over anchors Qty- 2 nos
Max. No. of Users	2 Users
Max Span length	5m to 25m
Weight	9.02kg ± 0.10kg
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 795:2012 Type C TS 16415:2013 Type C

Key features

Supports two users with continuous movement along the line
Crossover points allow safe passing without detaching
Tension indicator ensures correct line setup
Comes packed in a protective and easy-to-carry storage bag

Applications

Anchorage

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
