Horizon 2 Man Temporary Horizontal Rope Anchorage Line

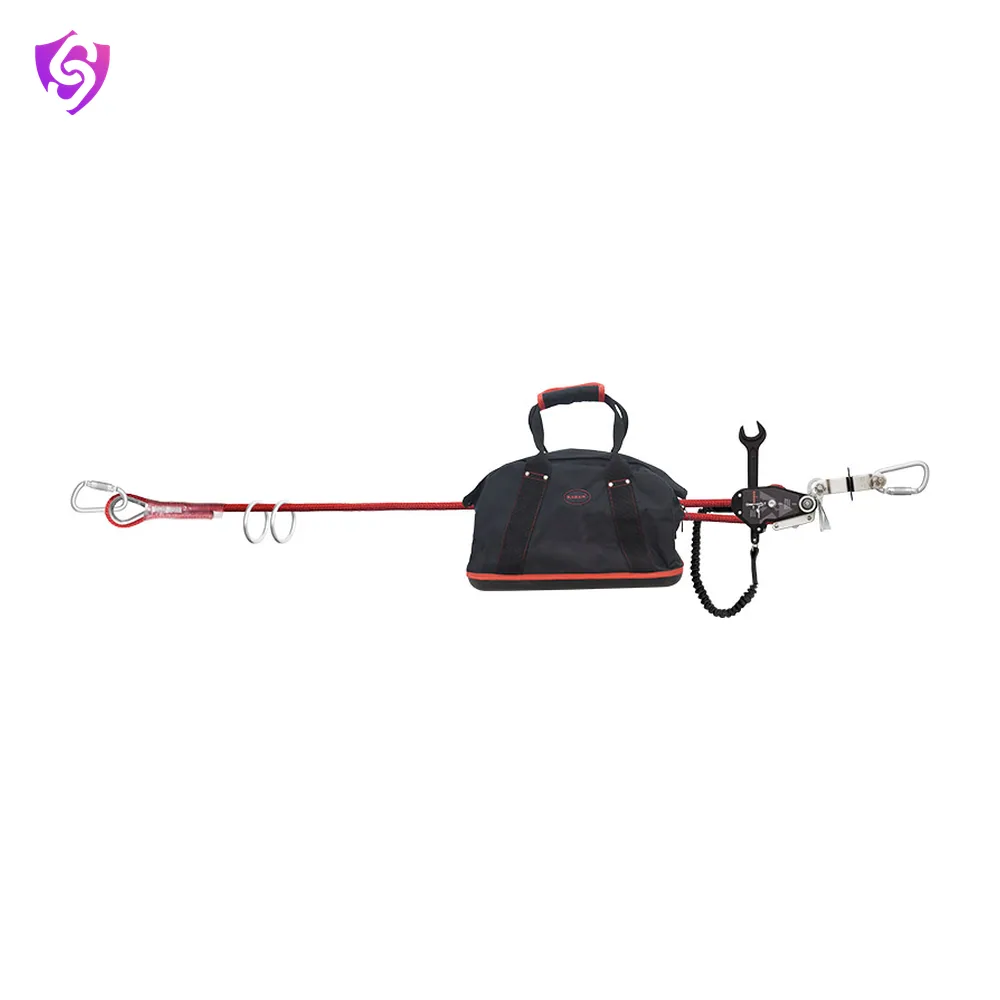

Name: Karam Horizon 2 Man Temporary Horizontal Rope Anchorage Line
Brand: Karam

The PN3002 is a compact and highly practical horizontal lifeline solution designed for teams of two working at height.

Model Horizon PN3002 EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	Horizon PN3002
Rope Type	Kernmantle rope of dia 16mm
Material of Tensioner	Galvanized steel
Attachment Ends	One end-stitched loop with PN113 other end-tension indicator with PN 113
Anchorage Type	Forged galvanized steel O-rings Qty- 2 nos
Max. No. of Users	2 Users
Max Span Length	5m to 25m
Weight	8.26kg ± 0.10kg
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 795:2012 Type C TS 16415:2013 Type C

Key features

Supports two users at the same time while ensuring uninterrupted tie-off
Crossover anchors allow safe passing between users without disconnecting
Tension indicator confirms correct line tension before use
Supplied with a protective carry bag for easy handling and safe storage

Applications

Anchorage

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
