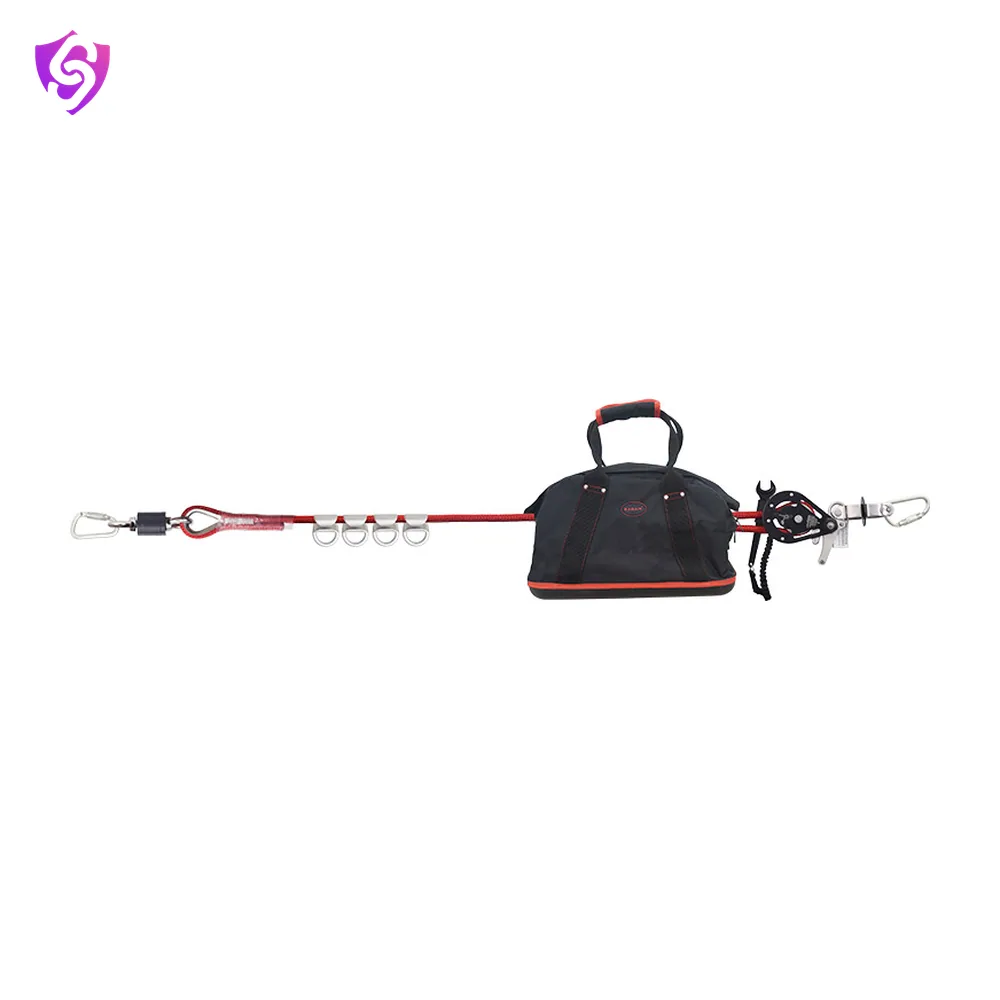

Horizon 4 Man Temporary Horizontal Rope Anchorage Line

Name: Karam Horizon 4 Man Temporary Horizontal Rope Anchorage Line
Brand: Karam

Designed for team-based work at height, the PN3001(C) provides a secure, continuous horizontal anchorage support for up to four users at a time.

Model Horizon PN3001(C) IS 3521EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	Horizon PN3001(C)
Rope Type	Kernmantle rope of dia 16mm
Material of Tensioner	Aluminium and stainless steel
Attachment Ends	One end-swivel connector with PN113 other end-tension indicator with PN113
Anchorage Type	Cross over anchors. Qty-4 nos
Max. No. of Users	4 Users
Max Span length	5m to 25m
Weight	10.11kg ± 0.10kg
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	IS 3521(Part 8):2021, EN 795:2012 Type C TS 16415:2013 Type C

Key features

Supports up to four users simultaneously for group fall protection
Smooth crossover capability allows uninterrupted movement along the lifeline
Tension indicator ensures correct and safe tensioning before use
Swivel connector minimizes rope twisting during operation

Applications

Anchorage

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
