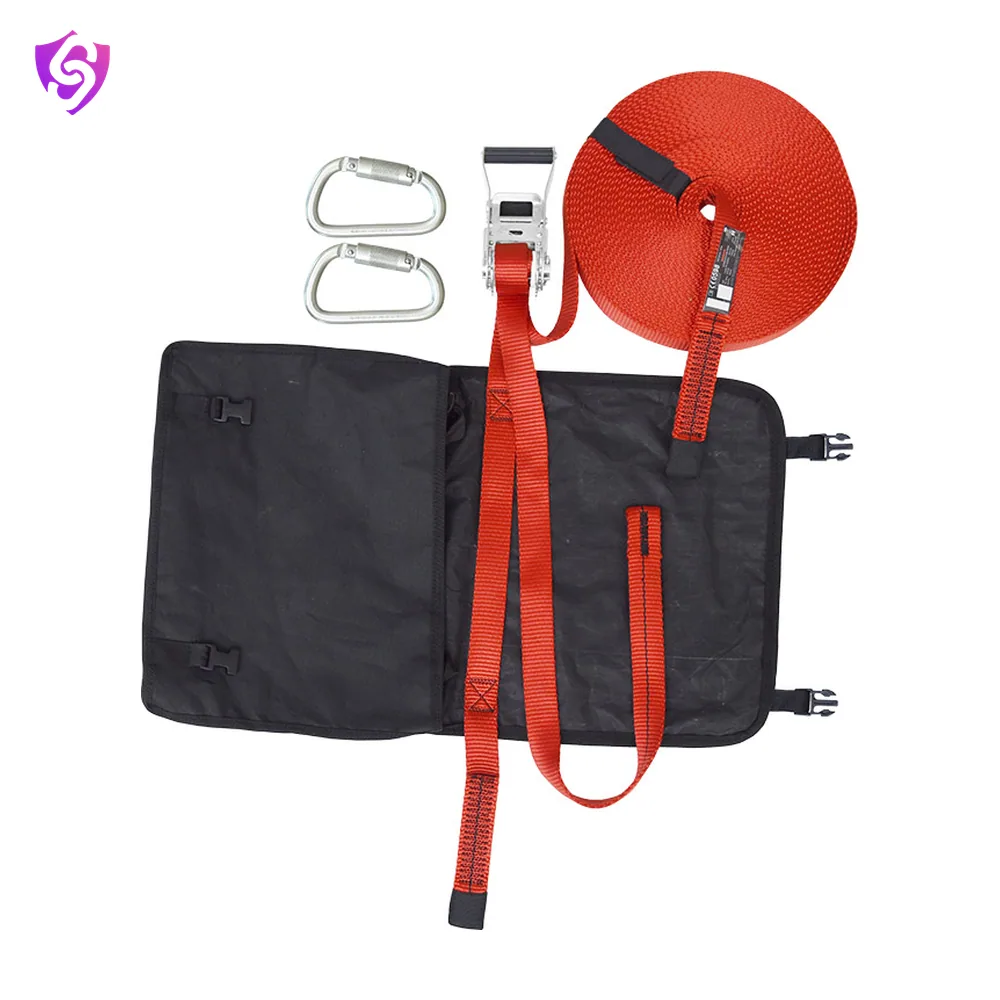

Horizon Temporary Horizontal Webbing Anchorage Line

Name: Karam Horizon Temporary Horizontal Webbing Anchorage Line
Brand: Karam

The Horizon PN3000 (BC) is a portable horizontal lifeline system designed to create a secure anchorage point between two structural supports.

Model Horizon PN3000(BC) EN 795IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	Horizon PN3000(BC)
Webbing Material	Polyester webbing of 30mm
Attachment Ends	Both ends-Stitched loops with PN113
Max. No. of Users	Upto 2 users
Max. Span Length	Upto 20m
Weight	4.25kgs ± 0.10kgs
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 795:2012 TS 16415:2013 Type B&C, IS 3521(Part 8):2021

Key features

Easy-to-install horizontal lifeline with built-in ratchet tensioning
Designed for use by two users at the same time
Adjustable length up to 20m to suit varied worksite requirements
Supplied in an integrated carry bag for quick transport and storage

Applications

Anchorage

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
