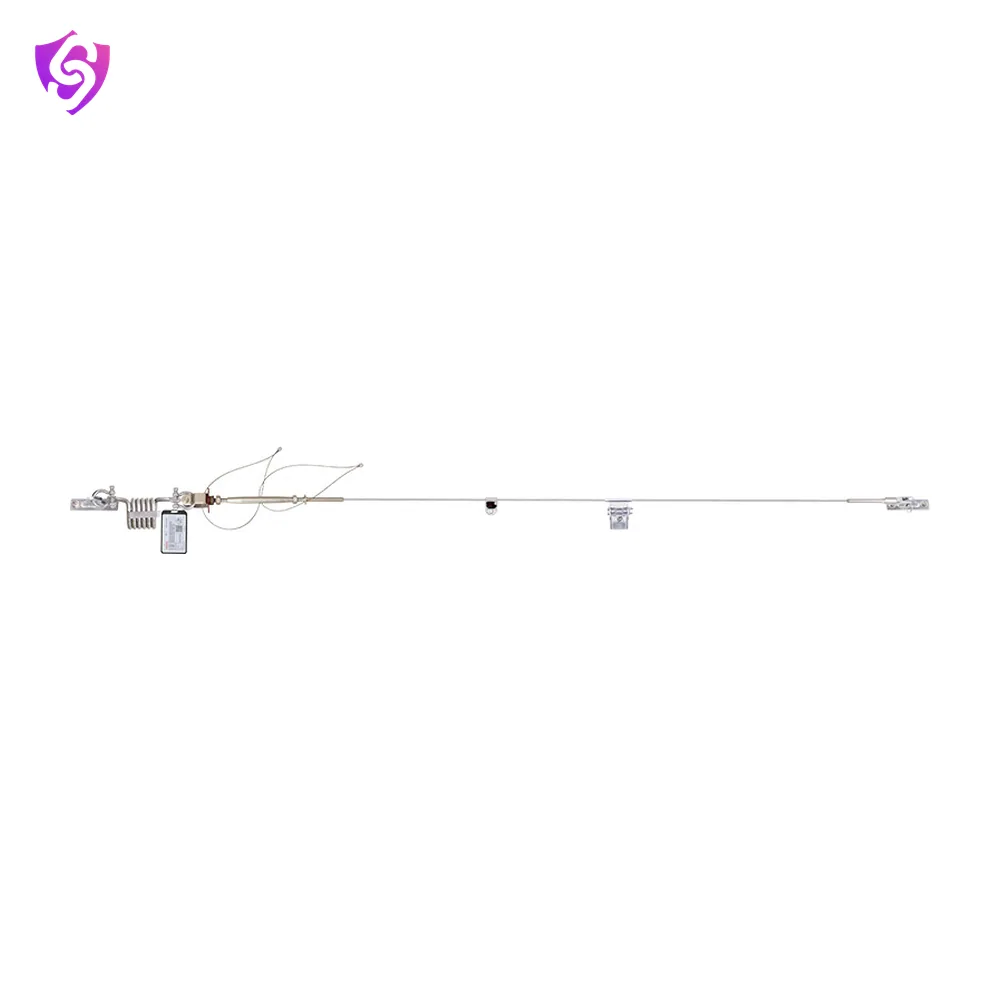

Horizontal Anchorage Lifeline System on Cable Line

Name: Karam Horizontal Anchorage Lifeline System on Cable Line
Brand: Karam

The Horizon PN 4000 (Floor/Ceiling Mounted) is a versatile horizontal lifeline system engineered to ensure continuous fall protection for up to four users working across elevated platforms or beneath ceilings.

Model Horizon PN4000 (Floor/Ceiling Mounted) EN 795IS 3521ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	Horizon PN4000 (Floor/Ceiling Mounted)
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type C, TS 16415:2013 (for upto 4 users), IS 3521(Part 8):2021, ATEX 2014/34/EU

Key features

MOC: Stainless Steel 316.
The line has a Shock Absorber at one end which reduces the impact of fall both on the user as well as on the extremities.
The Shock Absorber features a fall indicator.
Intermediates are required at every 5.0m to 15.0m for longer lines.
Carriage body passes through intermediates without disconnection.
The system is certified to be intrinsically safe; hence, it is an ideal choice for use in Industries like Petroleum/ Petro-Chemical Plants without fear of causing explosion due to any sparking.
Certified to EN 795:2012 Type C and TS 16415:2013 (for up to 4 users), IS 3521(Part 8):2021 and ATEX 2014/34/EU

Applications

Advertisement Bill Boards
Industrial Cranes
Oversized Machines
Reactors
Turbines & Rail Gantries

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
