Horizontal Anchorage Lifeline System on Cable Line

Name: Karam Horizontal Anchorage Lifeline System on Cable Line
Brand: Karam

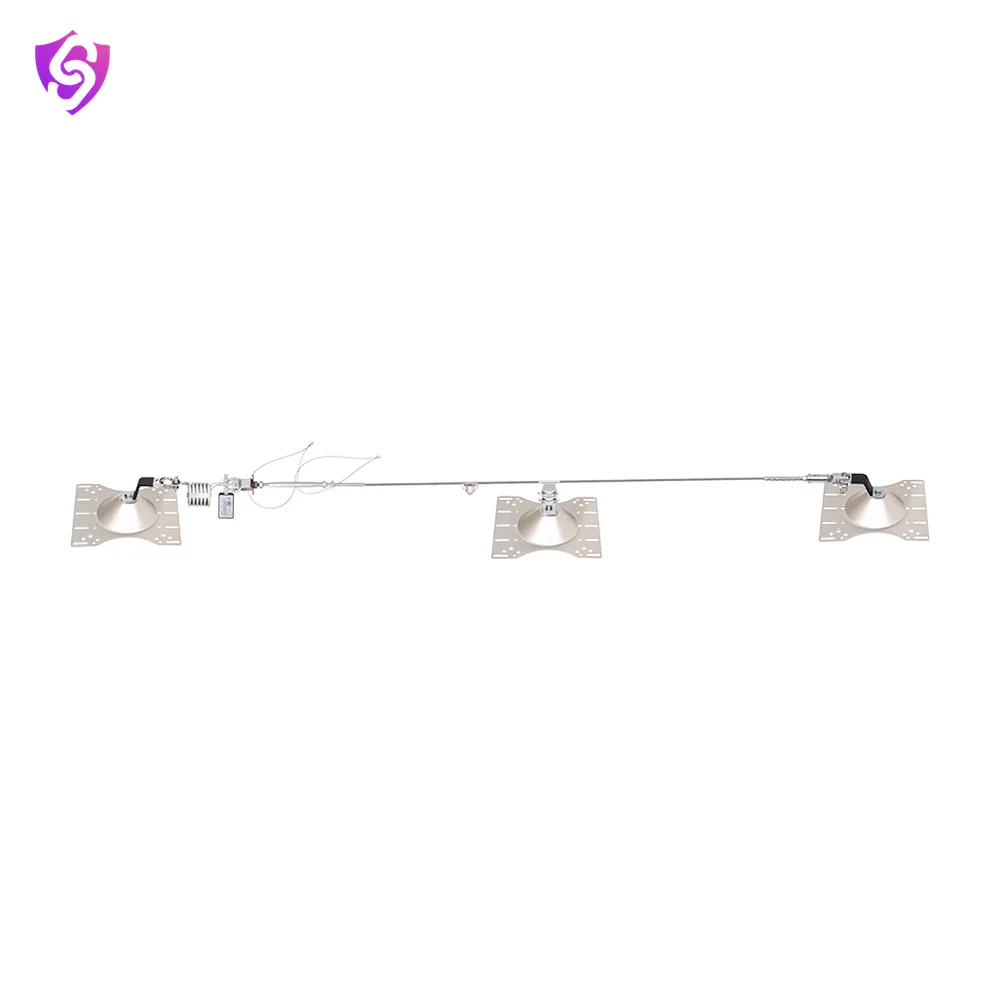

The Horizon PN 4000 (Roof Mounted) is a reliable horizontal anchorage system designed to ensure continuous fall protection for up to four users working at heights.

Model Horizon PN4000 (Roof Mounted) EN 795IS 3521ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	Horizon PN4000 (Roof Mounted)
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type C, TS 16415:2013 (for upto 4 users), IS 3521(Part 8):2021, ATEX 2014/34/EU

Key features

MOC: Stainless Steel.
The line has a Shock Absorber at one end which reduces the impact of fall both on the user as well as on the extremities.
The Shock Absorber features a fall indicator.
Intermediates are required at every 5.0m to 15.0m for longer lines
Carriage body passes through intermediates without disconnection.
Variety of roof posts available for different types of roof sheet profiles.
Certified to EN 795:2012 Type C and TS16415:2013 (for upto 4 users), IS 3521(Part 8):2021 and ATEX 2014/34/EU

Applications

Industrial Buildings
Airports
Pre-engineered building roofs

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
