Karam

Parapet Anchor with Extended Movable Arm

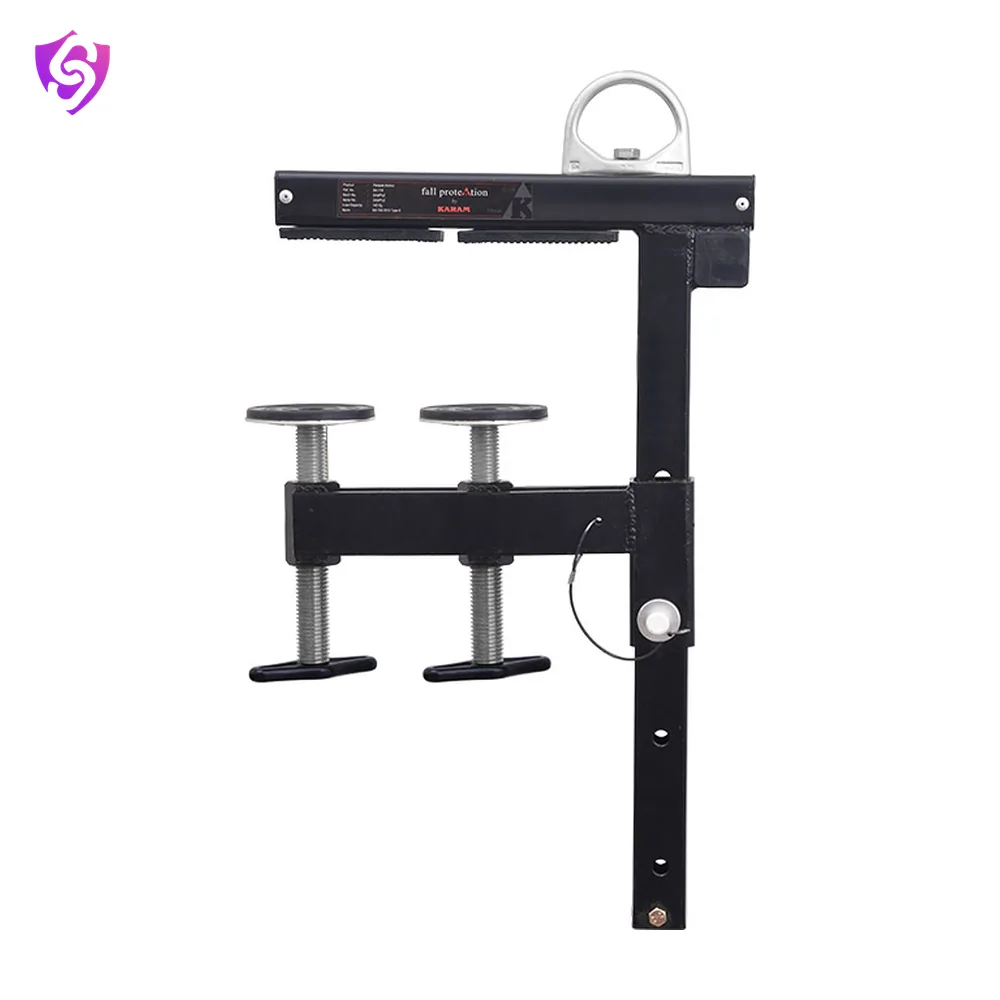

Name: Karam Parapet Anchor with Extended Movable Arm
Brand: Karam

The SA 11(B) is a strong and reliable fall protection solution designed for professionals working at height.

Model SA11B Type B Anchor EN 795IS 3521ANSI Z359.18

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA11B Type B Anchor
Material	Alloy steel with ED coated black
Minimum Breaking Strength	23kN
Flange Width	60mm to 360mm
Net Weight	9.56kg ± 0.1kg
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	Certified to EN 795:2012 Type B, IS 3521(Part 7):2021, ANSI Z359.18-2017 type A

Key features

Provides reliable fall protection for parapet-based anchorage
Adjustable width makes it suitable for varying parapet sizes
Rubber grips ensure strong hold without damaging surfaces
Extended movable arm allows installation on moulded parapets
Built from high-strength alloy steel for long-lasting durability

Applications

Work at Height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
