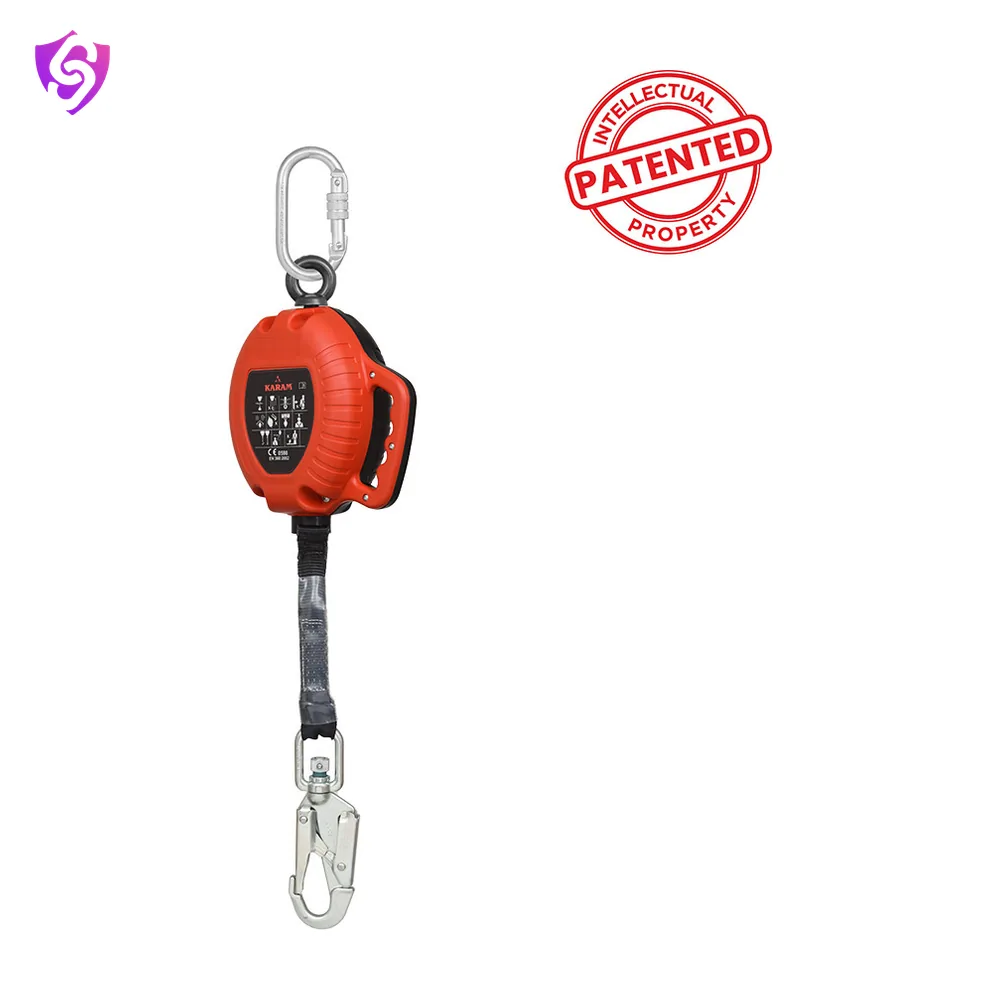

Retractable Fall Arrest Webbing Block

Name: Karam Retractable Fall Arrest Webbing Block
Brand: Karam

The TPWB 3.5 is a reliable retractable fall arrest device designed to provide workers with secure protection during work at heights.

Model TPWB3.5 EN 360

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	TPWB3.5
Casing Type	High impact polymer casing
Rope Type and Dia	Polyester Webbing 25 mm.
Static Strength	15 kN for 3 minutes
Attached Hook	Steel swivel snap hook
Wire Rope Length	Webbing length: 3.5m
Weight	2.27kgs +- 0.02 kgs
Warranty	6 months from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	Conforms to EN 360:2023

Key features

Durable 25mm polyester webbing with 20 kN minimum breaking strength
Robust plastic casing for impact resistance and weather protection
Swivel steel snap hook with load indicator for immediate fall detection
Anchorage eye for secure attachment at the anchor point
Lightweight and compact design for easy portability and handling

Applications

Fall Protection
Oil and Gas Industries
Rainy Areas
Work at Height
Industrial Sites

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
