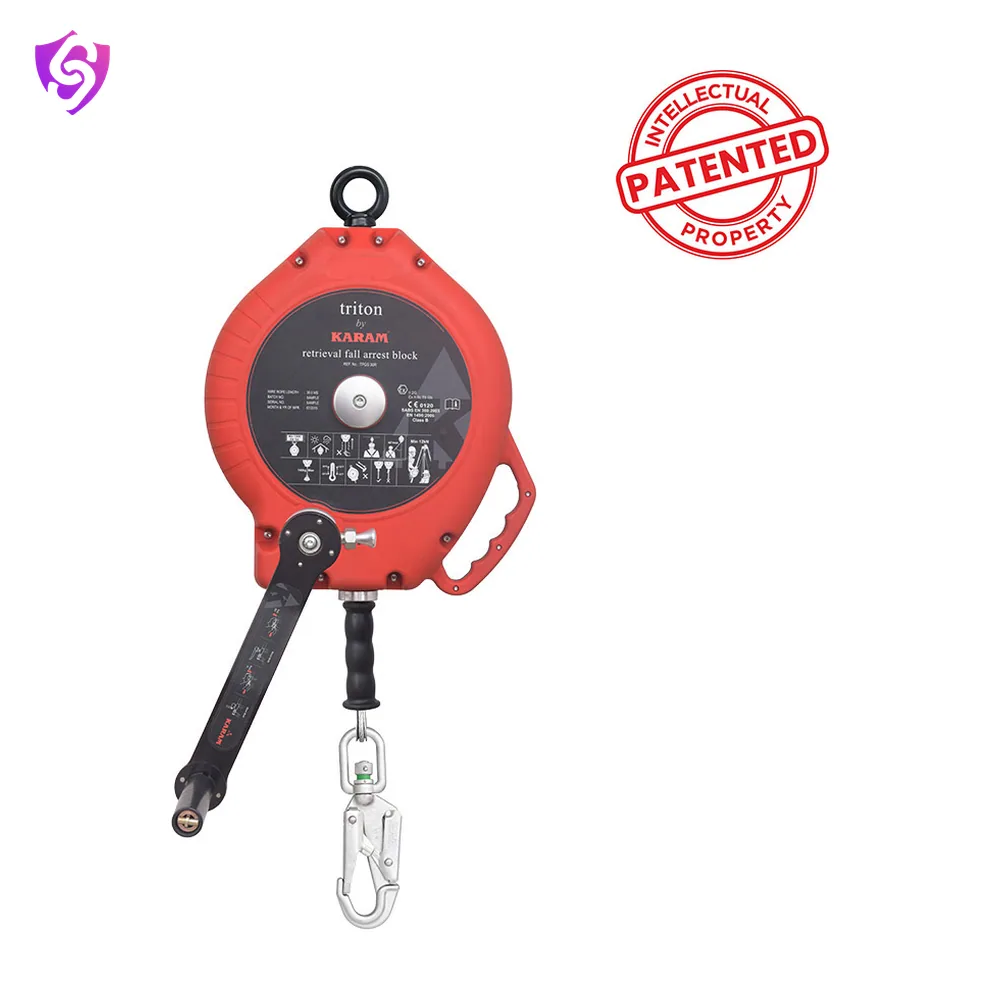

Retrieval Fall Arrester Block 30 meters

Name: Karam Retrieval Fall Arrester Block 30 meters
Brand: Karam

The KARAM TPGS 30R SS Retrieval Fall Arrester Block is designed for advanced fall protection and efficient rescue operations in demanding height and confined space applications.

Model TPGS30R SS EN 360EN 1496ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	TPGS30R SS
Casing Type	Plastic casing
Rope Type and Dia	Stainless steel wire rope Ø4.8mm.
Minimum Breaking Strength	12kN
Attached Hook	PN162
Wire Rope Length	30m
Weight	14.92 kgs
Warranty	6 months from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	Conforms to EN 360:2023, EN 1496:2017 CLASS B, ATEX 2014/34/EU

Key features

Dual mode fall arrest and retrieval functionality
Integrated hoisting winch for rescue operations
Robust and durable polymer casing
Swivel anchorage eye for secure connection
Stainless steel wire rope for enhanced durability

Applications

Fall Protection
Oil and Gas Industries
Work at Height
Industrial Sites

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
