Retrieval Fall Arrester Block

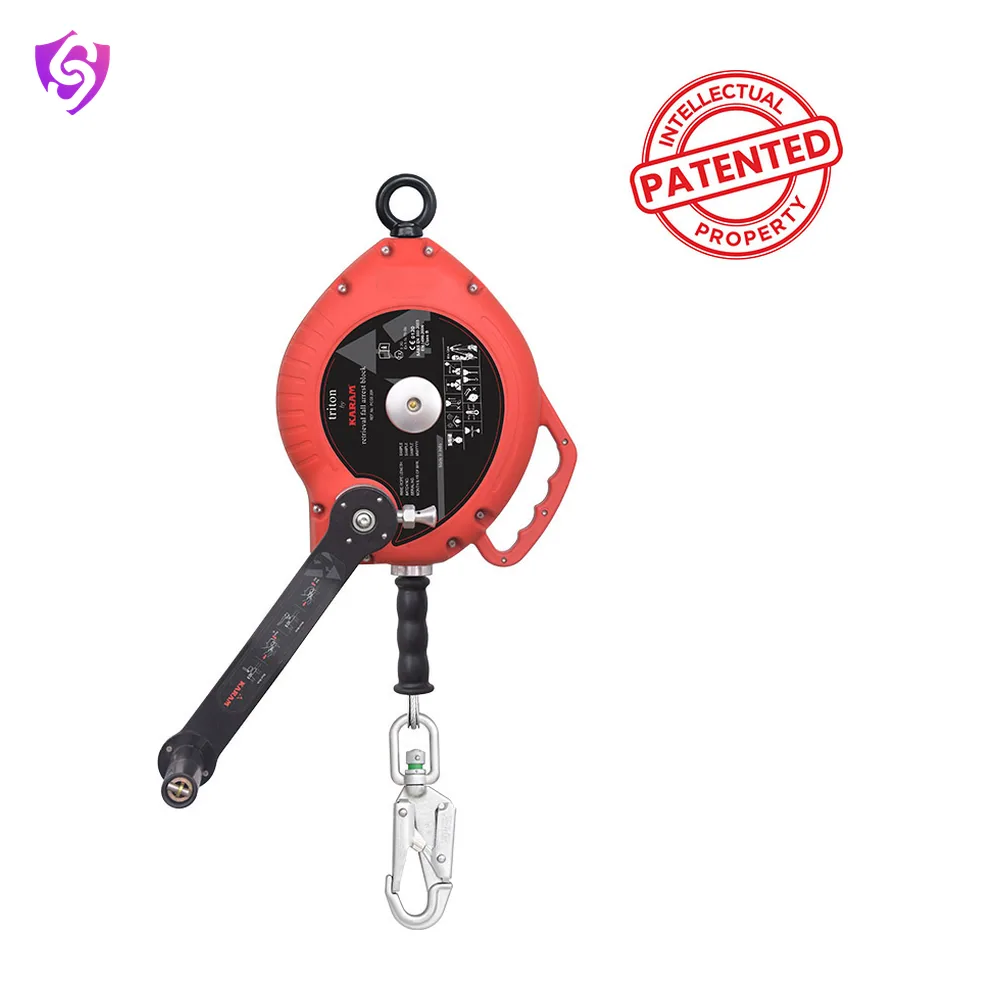

Name: Karam Retrieval Fall Arrester Block
Brand: Karam

The TPGS 20R is a robust and reliable fall arrest block designed to provide superior safety and protection in high-risk work environments.

Model TPGS20R EN 360EN 1496ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	TPGS20R
Casing Type	Plastic casing
Rope Type and Dia	Galvanized steel wire rope Ø4.5mm
Static Strength	12kN
Attached Hook	PN162
Wire Rope Length	20m
Weight	8.1 kgs
Warranty	6 months from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	Conforms to EN 360:2023, EN 1496:2017 CLASS B, ATEX 2014/34/EU

Key features

Durable plastic casing for extended service life
Galvanized steel wire rope with optional stainless steel variant
Swivel steel snap hook with load indicator for secure connections
20 meters cable length for versatile fall protection

Applications

Fall Protection
Oil and Gas Industry
Work at Height
Industrial Sites

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
