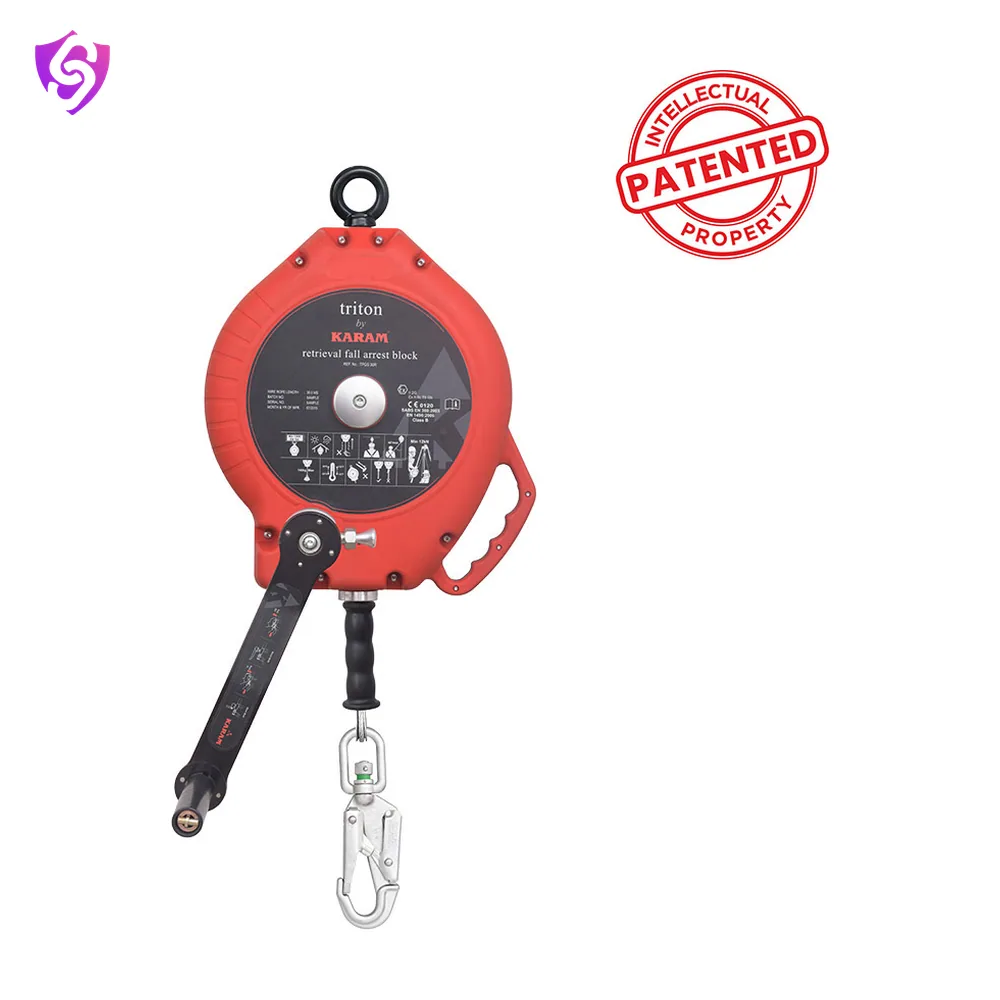

Retrieval Fall Arrester Block

Name: Karam Retrieval Fall Arrester Block
Brand: Karam

The TPGS 30R is a high-performance retrieval-type fall arrest block designed to ensure maximum safety during rescue operations and fall protection activities.

Model TPGS30R EN 360EN 1496ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	TPGS30R
Casing type	Plastic casing
Rope Type and Dia	Galvanized steel wire rope Ø4.5mm
Static Strength	12kN
Attached Hook	PN162
Wire Rope Length	30m
Weight	14.62 kgs
Warranty	6 months from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	Conforms to EN 360:2023, EN 1496:2017 CLASS B, ATEX 2014/34/EU

Key features

Durable polymer casing with integrated hoisting winch
Galvanized steel wire rope with stainless steel option
Swivel steel snap hook with load indicator for secure attachment
Aluminum guide and handle for easy operation
30-meter cable length for extended reach

Applications

Fall Protection
Oil and Gas Industry
Work at Height
Industrial Sites

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
