Karam

Stainless Steel Extremity Anchor Plate

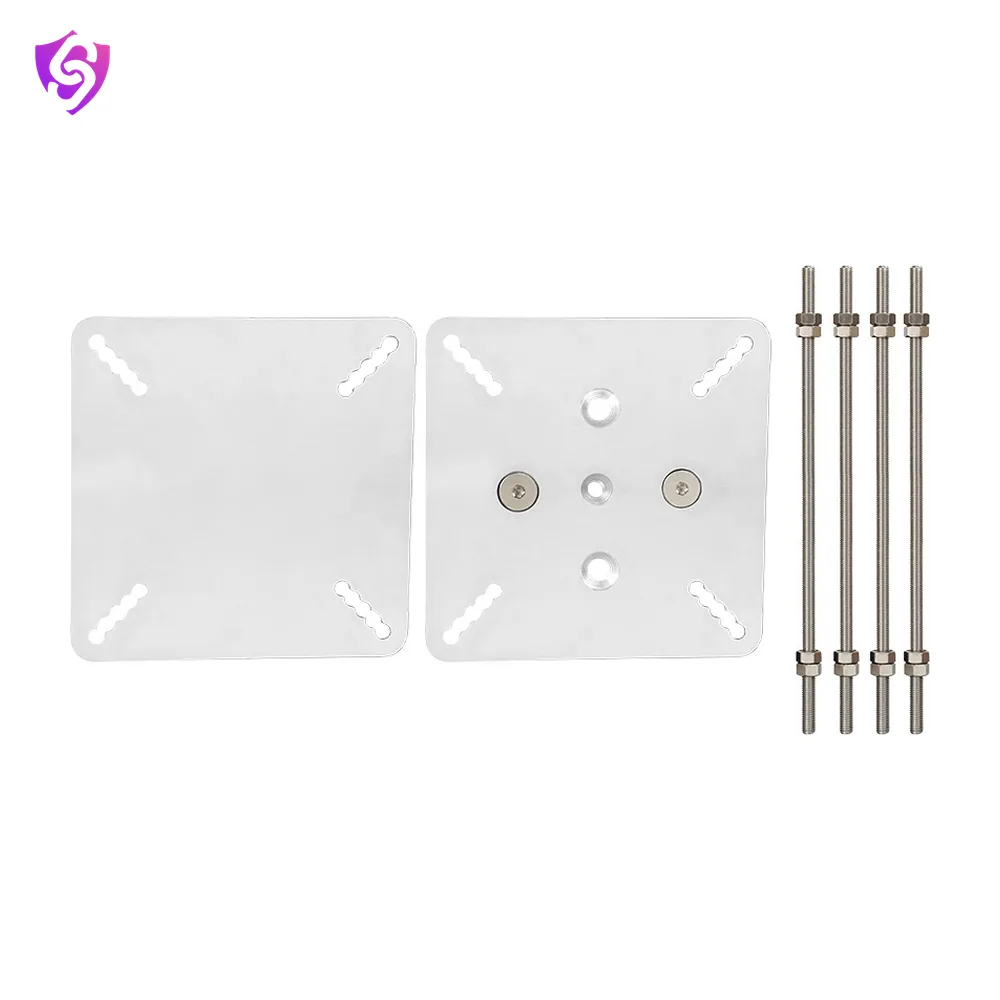

Name: Karam Stainless Steel Extremity Anchor Plate
Brand: Karam

These are anchor points strategically placed at the edges or extremities of the structure.

Model SA22SS EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA22SS
Material	SS Grade 316
Finish	Electropolished / ED Coated
Weight	10.18kg
Minimum Breaking Strength	15kN
Confirms to	EN795:2012 Type A, TS16415:2013 Type A
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN795:2012 Type A, TS16415:2013 Type A

Key features

Compatible with Minimum Flange width: 150.0 mm
Compatible with Maximum Flange width: 220.0 mm

Applications

Horizontal Lifeline
Rooftops
Work at Height
Fall Protection
Maintenance
Construction

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
