Steel Point Anchor

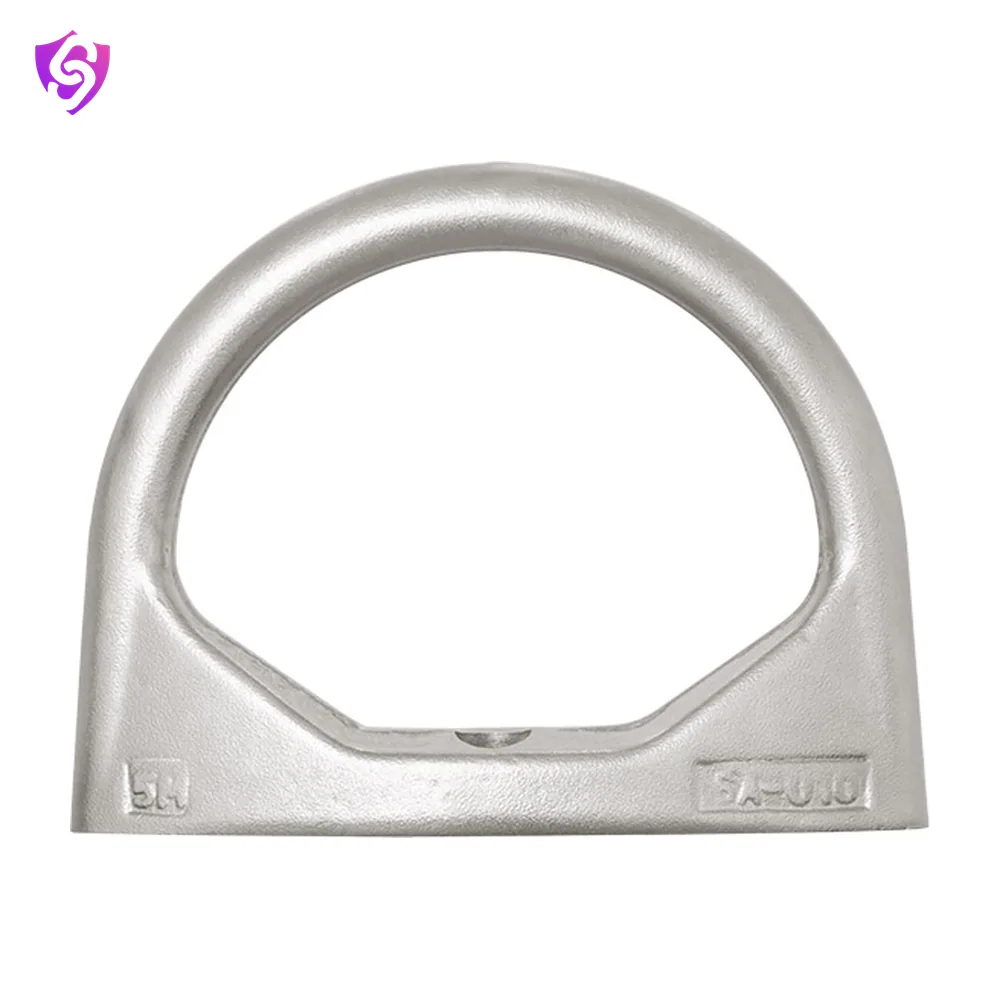

Name: Karam Steel Point Anchor
Brand: Karam

The SA 10 is a durable and versatile fall protection solution designed to ensure maximum safety in elevated work environments.

Model SA10- Type A Anchor EN 795ANSI Z359.18AS/NZS 5532IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA10- Type A Anchor
Material	Alloy steel
Minimum Breaking Strength	23kN
Finish	Silver/golden yellow galvanized
Net Weight	380.0gm
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	Conforms to EN 795:2012 Type A, TS 16415:2013 Type A (for up to 4 users), ANSI Z359.18:2017 Type A, Certified to AS/NZS 5532:2013, IS 3521(Part 7):2021

Key features

Durable alloy steel construction for long service life.
Galvanized finish for enhanced corrosion resistance.
Flexible installation on walls, ceilings, rooftops, and steel structures.
Supports multiple users with reliable load capacity.
Lightweight design for easy handling and installation.

Applications

Steel Structures
Wall
Celling
Roof Tops

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
