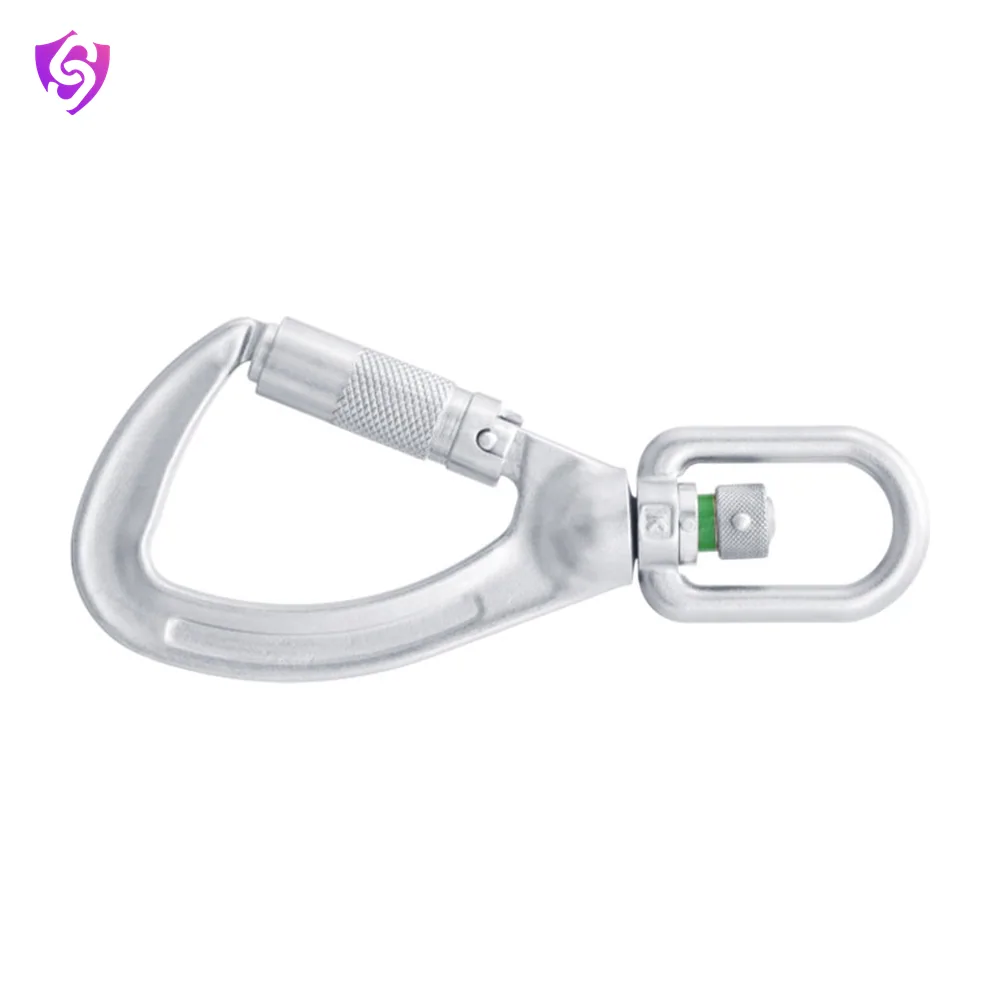

Steel Swivel Triple Action Locking Bulb type Snap Hook with Load Indicator

Name: Karam Steel Swivel Triple Action Locking Bulb type Snap Hook with Load Indicator
Brand: Karam

The PN165T is a heavy-duty swivel snap hook designed to deliver maximum safety and reliability in height safety systems.

Model PN165T EN 362

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN165T
Material	Alloy steel
Gate Opening	21.0mm
Minimum Breaking Strength	23kN
Net Weight	400.0gm
Finish	Silver/golden yellow galvanized, shot blasted on request
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 362:2004 Class T

Key features

Forged alloy steel body with galvanized zinc finish
Triple-action locking nut ensures secure fastening
Swivel ring captive eye prevents twisting of lanyards
Unique load indicator shows if a fall has been arrested
Built strong and durable for consistent safety at height

Applications

Fall Protection
Rope Access
Mountaineering
Rescue

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
