Winches

Name: Karam Winches
Brand: Karam

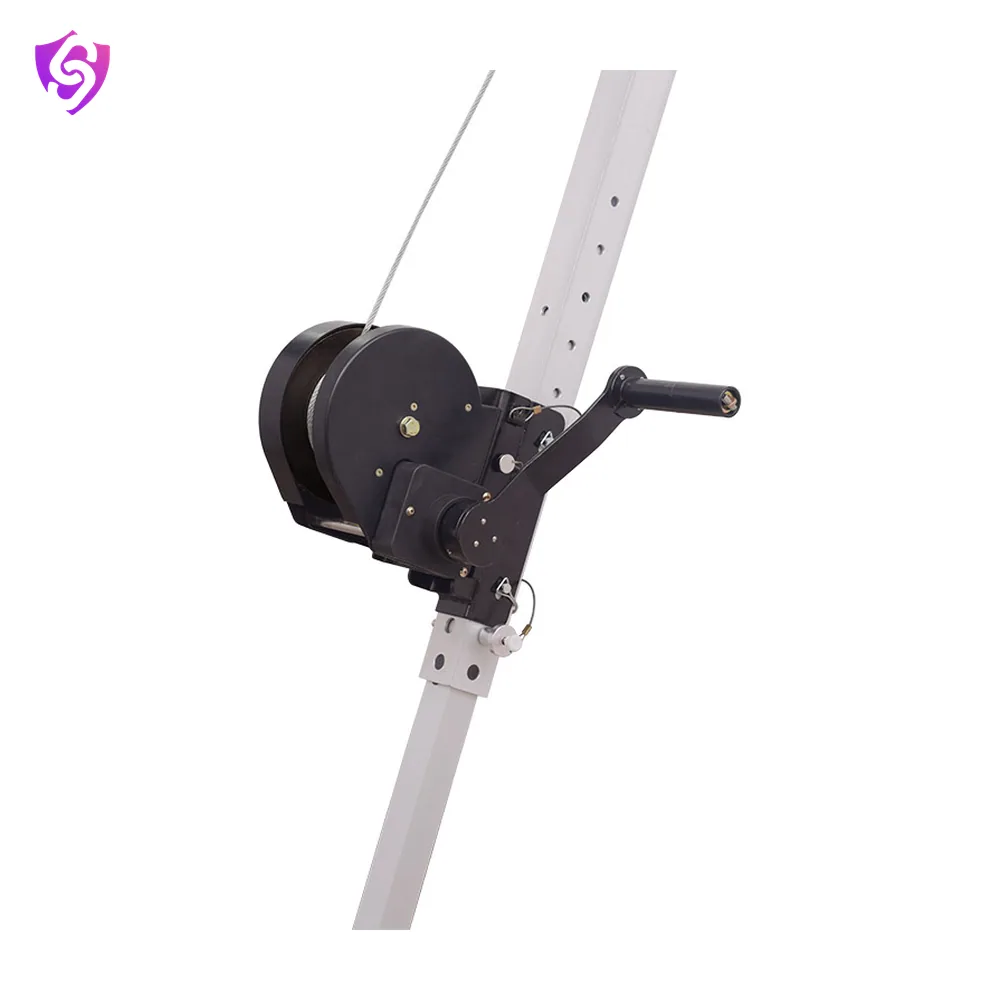

The PN817(DP) Winch is designed to support safe and reliable lifting or lowering of personnel and material during confined space operations.

Model PN817(DP) EN 1496ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN817(DP)
Winch Line Material	Galvanized steel wire rope of dia 4.8mm
Length of Cable	20.0m
Connector	Steel swivel snap hook PN162
Compatibility	Can be mounted on megapods, tripods and K-pod with the help of their universal mounting brackets respectively
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 1496:2017 Class A, Atex 2014/34/EU

Key features

Enables smooth lifting and lowering in confined spaces
Suitable for both personnel and material handling
Supports controlled movement in vertical entry points
Integrates with KARAM confined space setups

Applications

Construction
Electricity
Oil and Gas Industry
Telecom
Chemical Industry
Civil Industry

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
