Udyogi

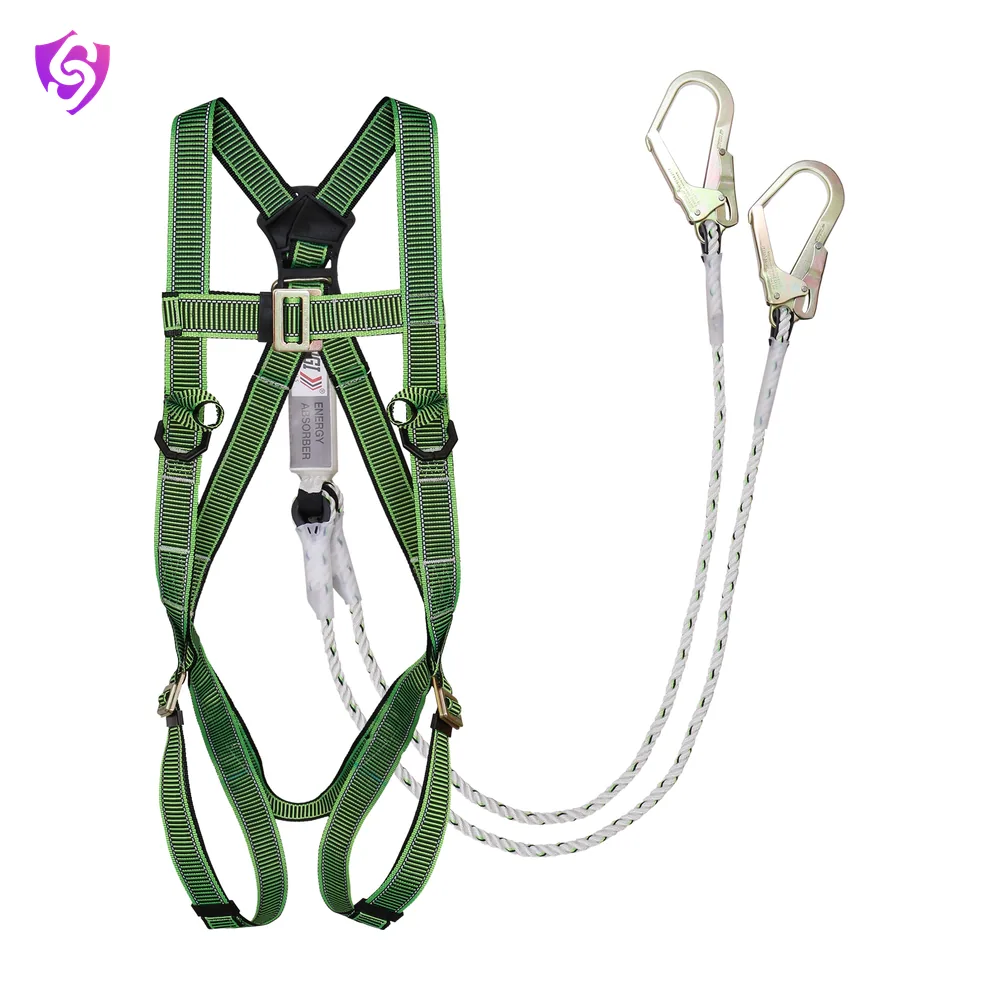

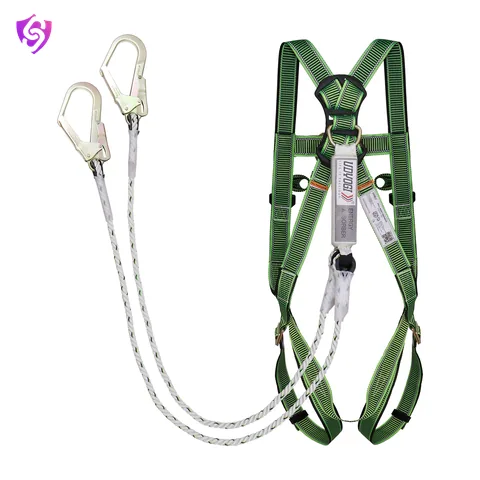

ECO1SHAP60 harness with rope

Full body harness with retro reflective webbing & lanyard for fall arrest application

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	ECO1SHAP60
Webbing Material	Polyester
Webbing Breaking Strength	23 kN
Safe Working Load Capacity	100 kg
Colour	Black & Green with Dual reflecting Line
Feature	Built in dual color Reflective liner type webbing for easy orientation attached with double high strength light weight Energy Absorbing polyamide rope lanyard and scaffolding hook
Weight	2.70 kg Approx.

Key features

One dorsal D-ring & two textile chest attachment loops for fall arrest.
Built-in dual-color reflective liner-type webbing for easy orientation.
Lanyard parking on sternal position.
Built-in fall indicator enables quick and easy post-fall inspection.
Fully adjustable straps at chest and thighs.
Available with energy absorbing Polyamide rope lanyard.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
