Udyogi

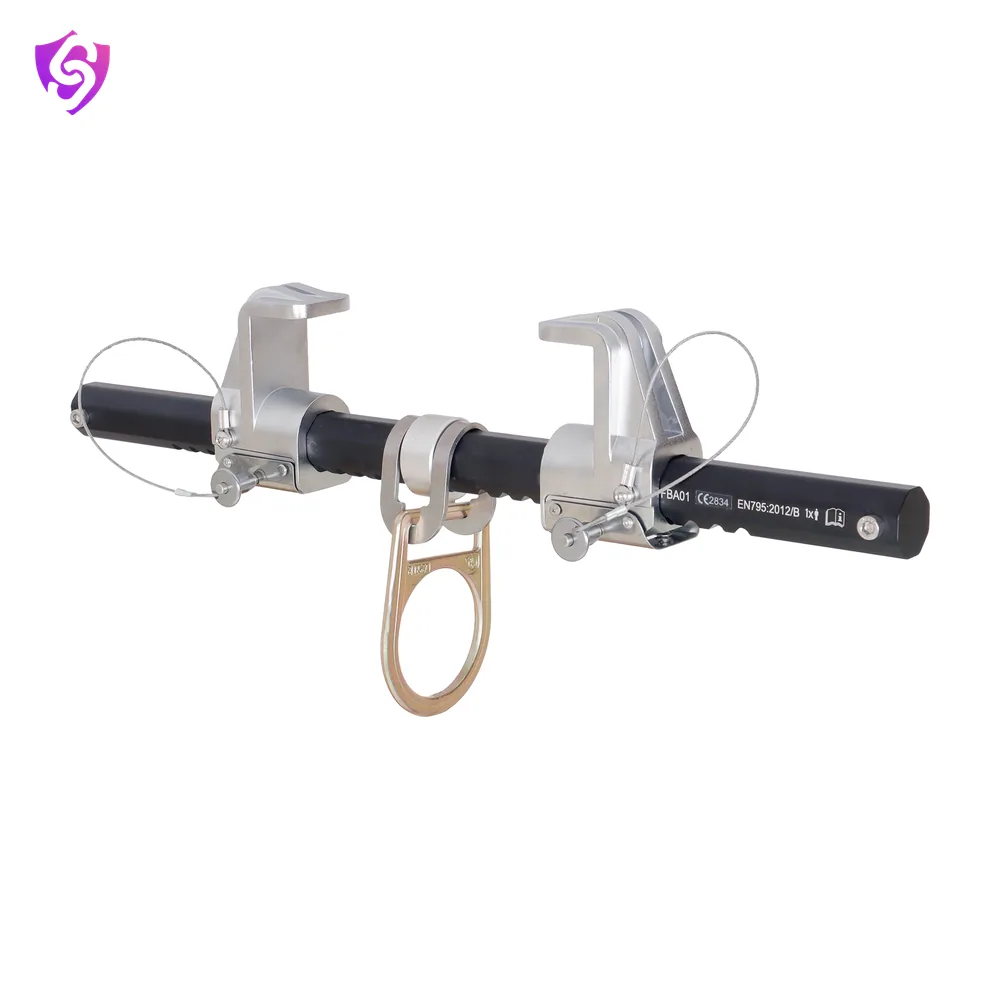

Edge Fixed Beam

Anchorage device for horizontal mobility

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	EDGE FIXED BEAM
Material	Aluminium & brass
Breaking Strength	23 kN (Minimum)
Safe Working Load Limit	140 kg
Fixing Range	76mm to 300mm
Net Weight	2.3 kg

Key features

Mobile anchor for horizontal movements.
Dual beam grip adjustment prevents twisting and turning.
Integral D-ring provides an anchorage connection point.
Fixing Range: 75 mm to 300 mm .

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
