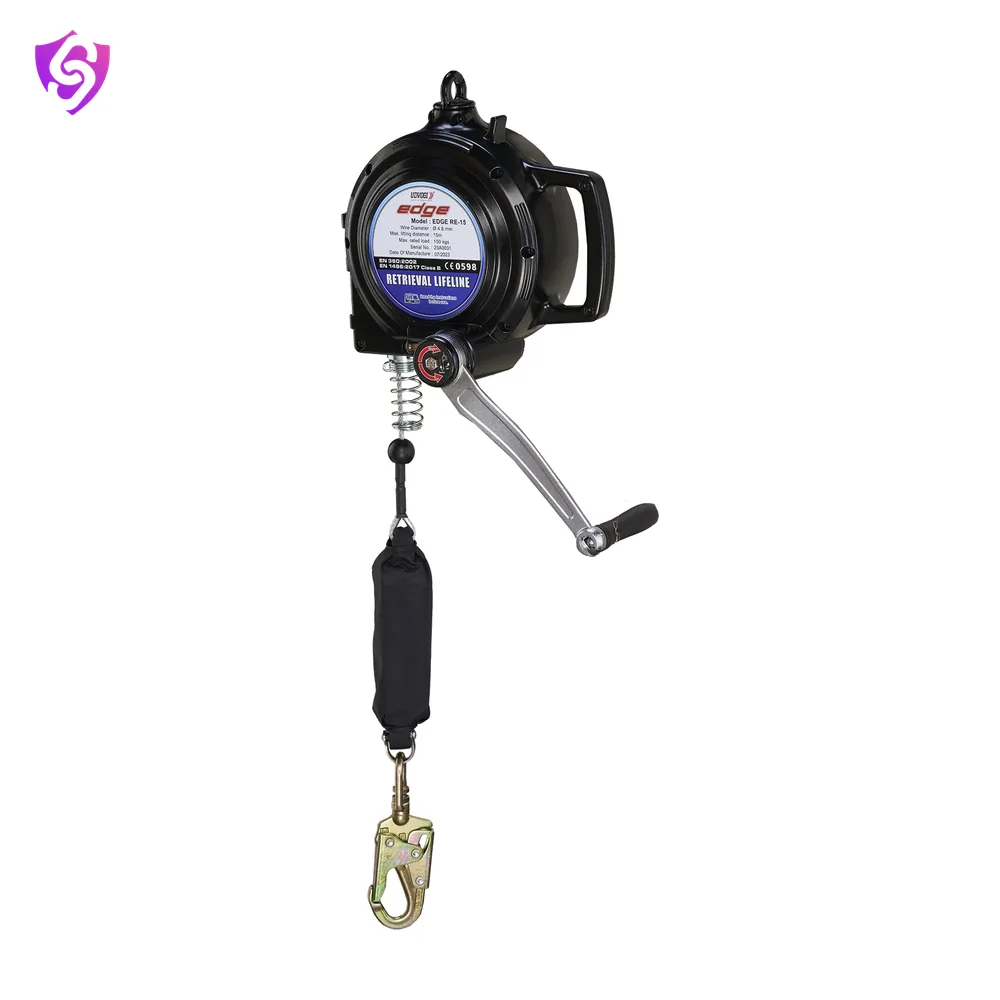

EDGE RE 20 retrieval type srl
GI rope self retracable lifeline with retrival system
- Test certificate available on request
Specifications
| Brand | Udyogi |
|---|---|
| Model | EDGE RE 20 |
| Wire Rope Material | Galvanized Steel |
| Housing | Alluminium |
| Rope Dia | Ø4.8 mm |
| Breaking Strength | 25 kN (Minimum) |
| Arresting Force | 6 kN (Maximum) |
| Fall Arrest Distance | 0.2-0.25 meter (Maximum) |
| Safe Working Load Capacity | 140 kg |
| Length | 20 meter |
| Weight | 16 kg (Approx) |
Key features
- SRL with RETRIEVAL system.
- Galvanized steel rope with swivel snap hook & fall indicator.
- Engineered with a lock pin mechanism to switch the operation mode from SRL to retrieval.
Applications
- Construction and steel erection
- Telecom and power towers
- Ports, shipyards and tank cleaning
- Maintenance at height
Care and replacement
Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
