Udyogi

IKAR Favorit

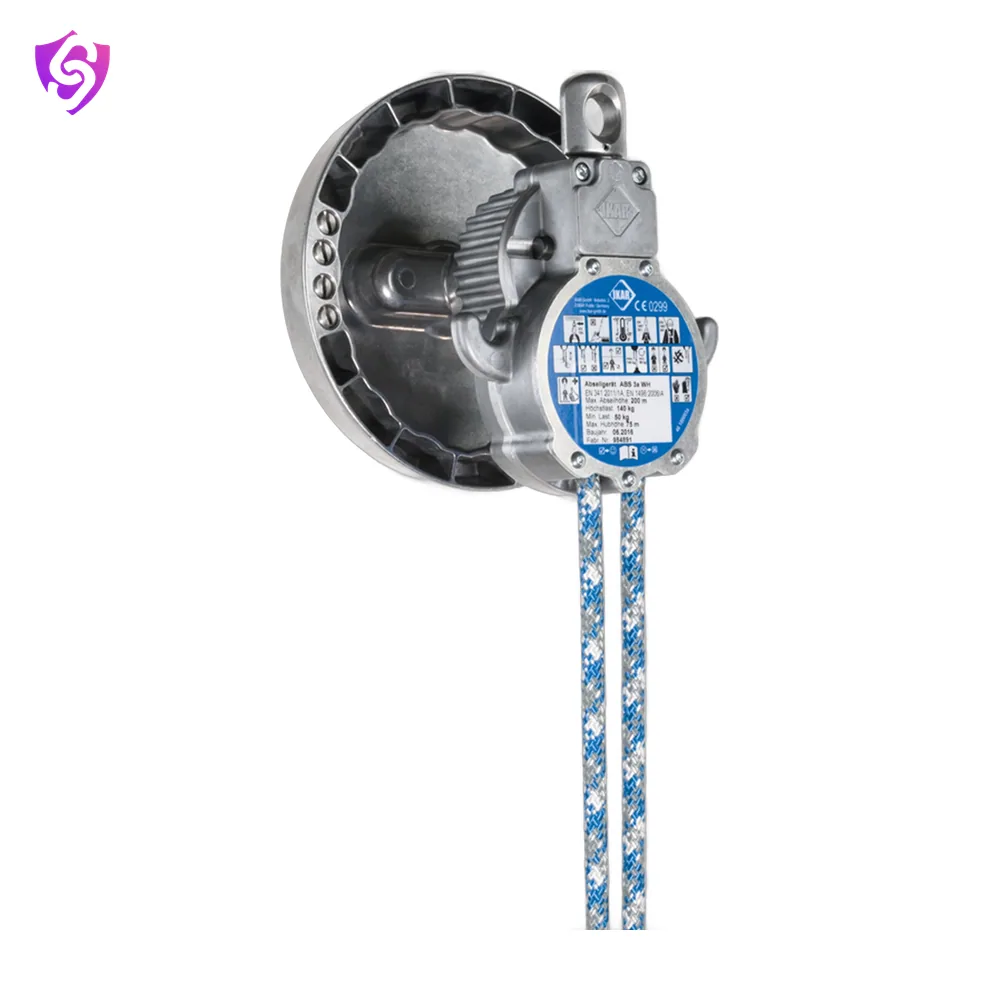

Name: Udyogi IKAR Favorit
Brand: Udyogi

Shuttle evacuation & rescue device for emergency situation

Model IKAR Favorit 60 IKAR Favorit 100 IKAR Favorit 150 IKAR Favorit 200

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	IKAR Favorit 60 IKAR Favorit 100 IKAR Favorit 150 IKAR Favorit 200
Material	Aluminium Housing and 10.5 mm dia Kernmantle rope
Hook Type	Aluminium double action Snap hook
Breaking Strength	20 kN
Maximum Descent Height	200mtr
Maximum Descent Speed	1.5mtr/sec
Rope Length	100/150/200 meter

Key features

Controlled descent device with integral hoisting facility and automatic speed regulator
With friction braking horns on the housing, for manual control if required
Switchable Reverse Lock with 3 mode locking mechanism
The ideal device for the rescue of persons suspended in their personal fall protection equipment following an arrested fall
The centrifugal brake keeps the device at a constant speed during the entire descent
Ideal device for self-rescue/multiple evacuations

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
