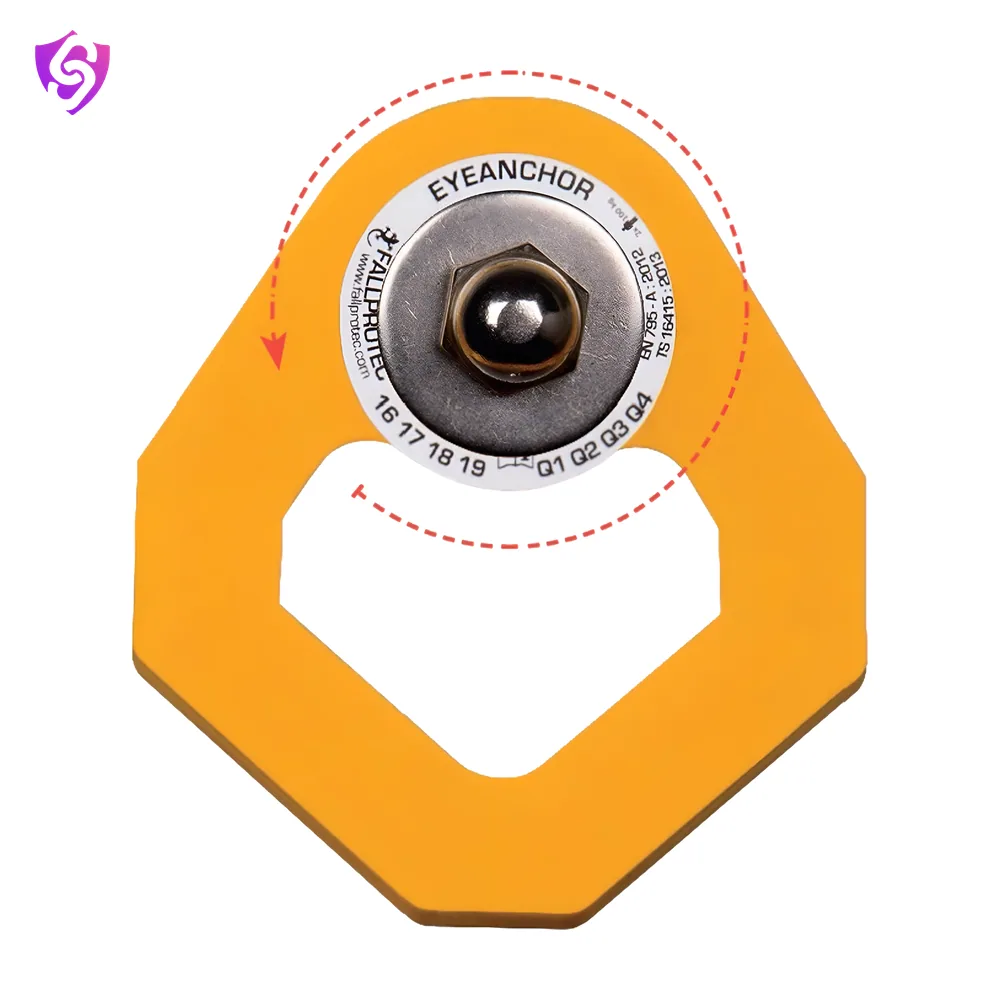

LDV029 fixed type

This anchor point is designed for two-user applications, constructed from stainless steel and finished with a high-visibility powder coating.The anchor point incorporates a rotational feature to accommodate user movement.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	LDV029
Material	Folded stainless steel plate and an eyepiece of POM (polyoxymethylene) Delrin
Breaking Strength	> 35 KN
Feature	YELLOW COATED ANCHOR POINT
Weight	0,28 Kg

Key features

High visibility anchor point
Rotative system
Suitable for abseiling works
The Yellow Anchor Eye Fallprotec is permanently installed on a building or other structure to maintain people who are at risk of falling when carrying out maintenance work
The anchor is mobile on its axis
Fixed with 1 no. M12 Bolts
Can be installed on Ground & Wall
User - 2 person

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
