Udyogi

SN001- Plus Braided+Mono Net

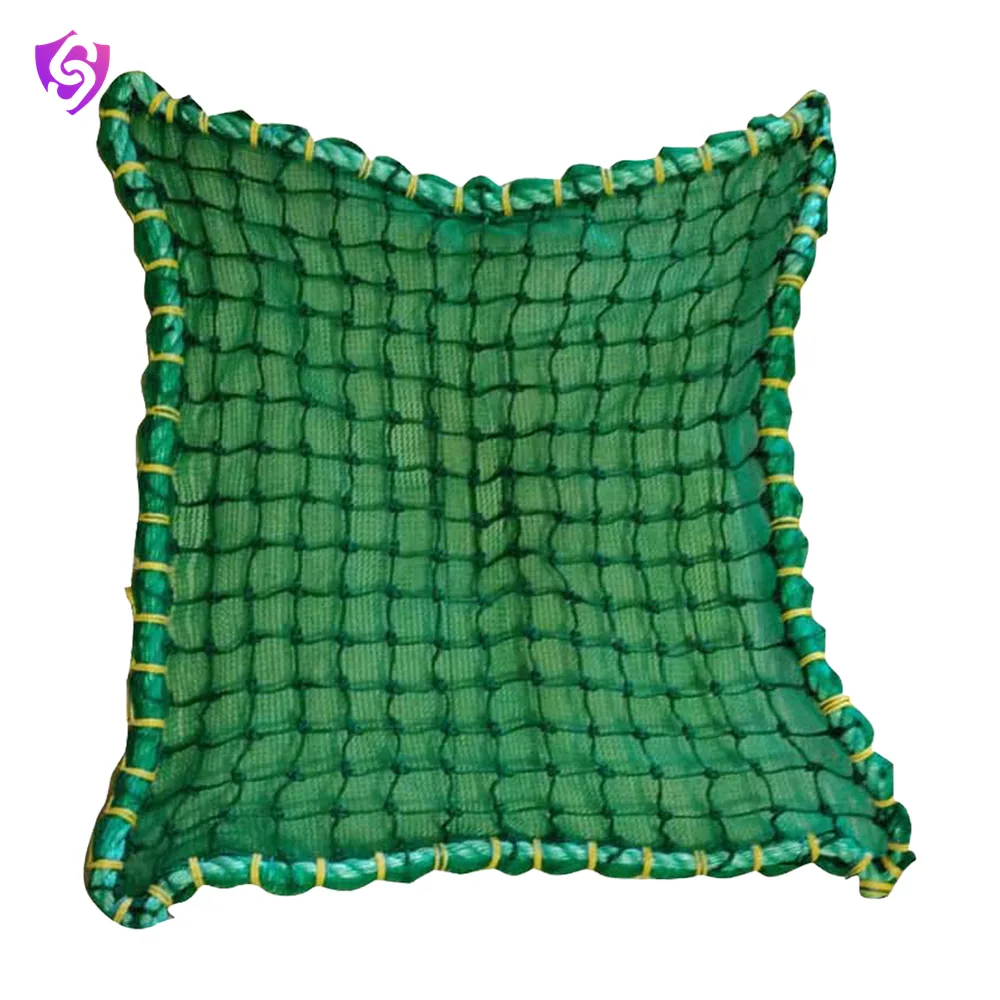

Name: Udyogi SN001- Plus Braided+Mono Net
Brand: Udyogi

Double Layer Braided Safety Net

IS 5175IS 11057

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Border Rope	12 mm PP Rope (ISI Marked).
1st Layer	2.5mm Braided Single Cord, having mesh size 30-35mm x 30-35mm.
2nd Layer	120 GSM Monofilament Net. Monofilament UV Stabilized Net with Welding / Grinding Splatter Resistant.
Fabrication Type	Machine Knotted.
Tie Rope & Tie Cord	12 mm dia PP rope of 2 meters length at all 4 corners of border rope only, and tie cord of 2 meters at every 1.5 meter interval.
Standard Size	10x3 Mtr / 10x5 Mtr / 10x10 Mtr
Standard / Approved	Rope Certified to IS 5175:1992, and Safety Net as per IS 11057:1984.

Key features

Double Layer Braided Safety Net with fine monofilament mesh added beneath the braided net.
Prevents small debris, tools, or materials from falling through.
Enhances safety by catching finer particles that the primary mesh cannot.
Double-layer design provides both fall protection and debris containment.
Suitable for worker safety and public protection below construction sites.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
