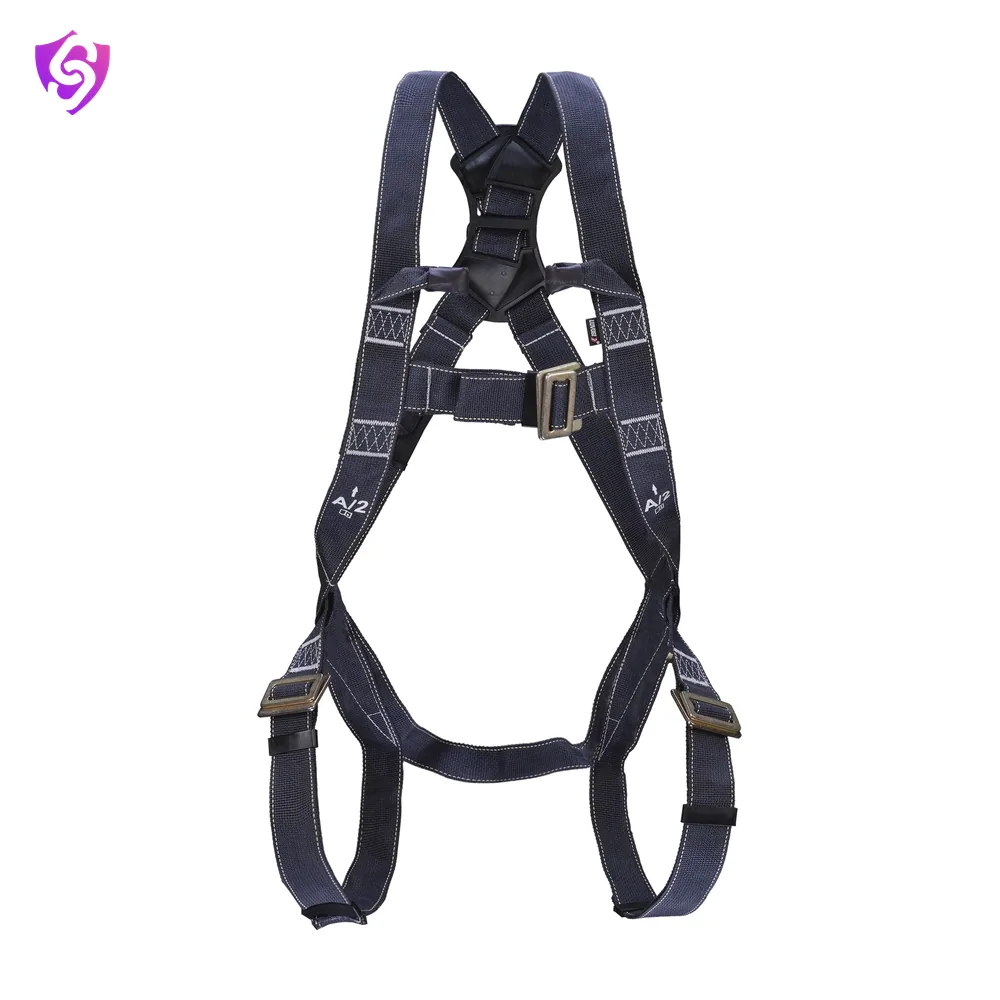

Udyogi

UB102 FR application based harness

Flame retardant full body harness design for hot works like welding, cutting etc.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	UB102 FR
Webbing Material	Aramid
Webbing Breaking Strength	22 kN (Minimum)
Safe Working Load Capacity	100 kg
Colour	Black
Feature	Flame retardant full body harness
Weight	1.00 kg Approx. (Only Harness)

Key features

The harness comes with one dorsal D-ring, one Sternal D ring for fall arrest, Two lateral D ring on waist for work positioning and One Ventral D-ring at waist level for (SPACE) suspended job.
Built-in fall indicator enables quick and easy post-fall inspection.
Fully adjustable chest and thigh strap.
Y-shaped padding on shoulder make it comfortable, simple, fast and easy access and donning.
Ideally positioned sit-strap for extended comfort.
Design for hot works like welding, cutting etc.in hot zone areas.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
