Udyogi

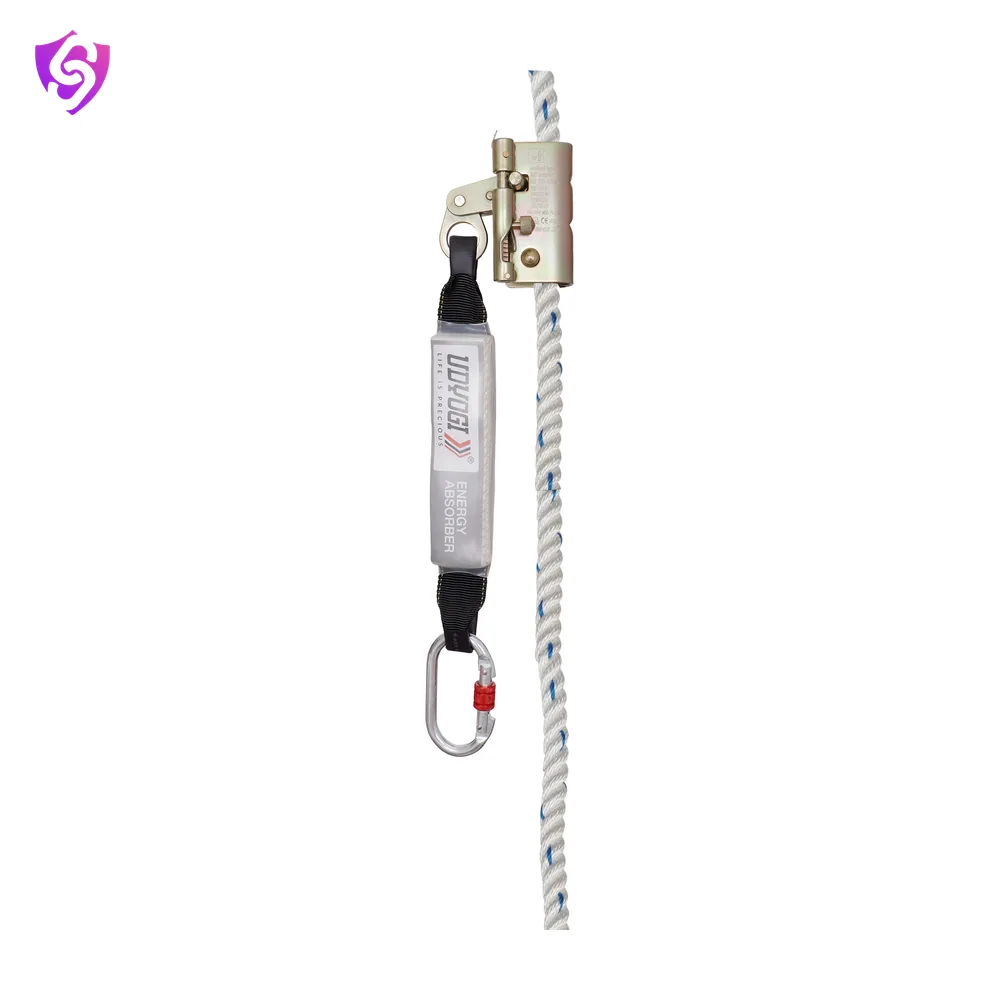

UB2011S rope grabs

A rope grab is a deceleration device that attaches to a lifeline and automatically engages and locks to arrest a fall.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	UB2011S
Material	Alloy Steel
Rope Dia	Ø14 mm
Breaking Strength	22 kN (Minimum)
Feature	Anti-Upside-Down Device with carabiner. Rope grabs are designed to lock onto a lifeline in the event of a fall, arresting the fall immediately. It works with the lifeline to provide shock absorption.
Weight	1.03 kg Approx.
Required Rope Material	Polyamide

Key features

Anti-Upside-Down Device with carabiner.
Rope grabs are designed to lock onto a lifeline in the event of a fall, arresting the fall immediately.
Rope grabs work with the lifeline to provide shock absorption.
Some rope grabs are designed to be hands-free, allowing the operator to move up and down the lifeline without having to manually adjust the rope length.
Rope grabs can be adjusted to work at the required length.
Some rope grabs are lightweight, making them suitable for emergency ascending climbing kits.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
